PRODUCT >> POWER TAPPER

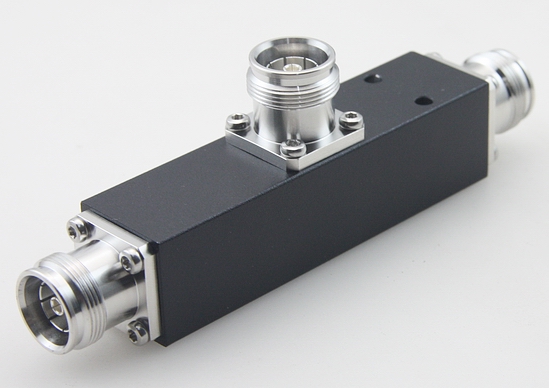

800-2500MHz Power Tapper


 Item Name:  5dB Power Tapper  Mailine Loss:  1.65±0.5 dB
 Model:  PT-825-200-5CNI *  Insertion Loss:  0.10 dB
 Frequency:  800-2500MHz  Impedance:  50 Ω
 Coupling:  5±0.8 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -150dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.35  Waterproof:  IP65 , RoHS

 Item Name:  6dB Power Tapper  Mailine Loss:  1.26±0.4 dB
 Model:  PT-825-200-6CNI *  Insertion Loss:  0.10 dB
 Frequency:  800-2500MHz  Impedance:  50 Ω
 Coupling:  6±0.8 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -150dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.35  Waterproof:  IP65 , RoHS

 Item Name:  7dB Power Tapper  Mailine Loss:  1.00±0.3 dB
 Model:  PT-825-200-7CNI *  Insertion Loss:  0.10 dB
 Frequency:  800-2500MHz  Impedance:  50 Ω
 Coupling:  7±0.8 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -150dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.35  Waterproof:  IP65 , RoHS

 Item Name:  10dB Power Tapper  Mailine Loss:  0.46±0.3 dB
 Model:  PT-825-200-10CNI *  Insertion Loss:  0.10 dB
 Frequency:  800-2500MHz  Impedance:  50 Ω
 Coupling:  10±1.0 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -150dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.35  Environment:  IP65 , RoHS

 Item Name:  15dB Power Tapper  Mailine Loss:  0.20±0.2 dB
 Model:  PT-825-200-15CNI *  Insertion Loss:  0.10 dB
 Frequency:  800-2500MHz  Impedance:  50 Ω
 Coupling:  15±1.20 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -150dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.35  Waterproof:  IP65 , RoHS

 Item Name:  20dB Power Tapper  Mailine Loss:  0.10±0.1dB
 Model:  PT-825-200-20CNI *  Insertion Loss:  0.10 dB
 Frequency:  800-2500MHz  Impedance:  50 Ω
 Coupling:  20±1.50 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -150dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.15  Waterproof:  IP65 , RoHS

 Item Name:  30dB Power Tapper  Mailine Loss:  0.10±0.1dB
 Model:  PT-825-200-30CNI *  Insertion Loss:  0.10 dB
 Frequency:  800-2500MHz  Impedance:  50 Ω
 Coupling:  30±1.50 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -150dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.15  Waterproof:  IP65 , RoHS

 Item Name:  40dB Power Tapper  Mailine Loss:  0.10±0.1dB
 Model:  PT-825-200-40CNI *  Insertion Loss:  0.10 dB
 Frequency:  800-2500MHz  Impedance:  50 Ω
 Coupling:  40±1.50 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -150dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.15  Waterproof:  IP65 , RoHS

 Item Name:  50dB Power Tapper  Mailine Loss:  0.10±0.1dB
 Model:  PT-825-200-50CNI *  Insertion Loss:  0.10 dB
 Frequency:  800-2500MHz  Impedance:  50 Ω
 Coupling:  50±1.50 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -150dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.15  Waterproof:  IP65 , RoHS

 Item Name:  5dB Power Tapper  Mailine Loss:  1.65±0.5dB
 Model:  PT-825-200-5CDI *  Insertion Loss:  0.10 dB
 Frequency:  800-2500MHz  Impedance:  50 Ω
 Coupling:  5±0.8 dB ***  Temperature:  -35- +75
 Power:  200W Average  Connector:  7/16(DIN)-Connector
 PIM:(dBc)  -150dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.15  Waterproof:  IP65 , RoHS

 Item Name:  6dB Power Tapper  Mailine Loss:  1.26±0.4dB
 Model:  PT-825-200-6CDI *  Insertion Loss:  0.10 dB
 Frequency:  800-2500MHz  Impedance:  50 Ω
 Coupling:  6±0.8 dB ***  Temperature:  -35- +75
 Power:  200W Average  Connector:  7/16(DIN)-Connector
 PIM:(dBc)  -150dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.15  Waterproof:  IP65 , RoHS

 Item Name:  7dB Power Tapper  Mailine Loss:  1.00±0.3dB
 Model:  PT-825-200-7CDI *  Insertion Loss:  0.10 dB
 Frequency:  800-2500MHz  Impedance:  50 Ω
 Coupling:  7±0.8 dB ***  Temperature:  -35- +75
 Power:  200W Average  Connector:  7/16(DIN)-Connector
 PIM:(dBc)  -150dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.15  Waterproof:  IP65 , RoHS

 Item Name:  10dB Power Tapper  Mailine Loss:  0.46±0.3dB
 Model:  PT-825-200-10CDI *  Insertion Loss:  0.10 dB
 Frequency:  800-2500MHz  Impedance:  50 Ω
 Coupling:  10±1.0 dB ***  Temperature:  -35- +75
 Power:  200W Average  Connector:  7/16(DIN)-Connector
 PIM:(dBc)  -150dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.15  Waterproof:  IP65 , RoHS

 Item Name:  15dB Power Tapper  Mailine Loss:  0.20±0.2dB
 Model:  PT-825-200-15CDI *  Insertion Loss:  0.10 dB
 Frequency:  800-2500MHz  Impedance:  50 Ω
 Coupling:  15±1.2 dB ***  Temperature:  -35- +75
 Power:  200W Average  Connector:  7/16(DIN)-Connector
 PIM:(dBc)  -150dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.15  Waterproof:  IP65 , RoHS

 Item Name:  20dB Power Tapper  Mailine Loss:  0.10±0.1dB
 Model:  PT-825-200-20CDI *  Insertion Loss:  0.10 dB
 Frequency:  800-2500MHz  Impedance:  50 Ω
 Coupling:  20±1.50 dB ***  Temperature:  -35- +75
 Power:  200W Average  Connector:  7/16(DIN)-Connector
 PIM:(dBc)  -150dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.15  Waterproof:  IP65 , RoHS

 Item Name:  30dB Power Tapper  Mailine Loss:  0.10±0.1dB
 Model:  PT-825-200-30CDI *  Insertion Loss:  0.10 dB
 Frequency:  800-2500MHz  Impedance:  50 Ω
 Coupling:  30±1.50 dB ***  Temperature:  -35- +75
 Power:  200W Average  Connector:  7/16(DIN)-Connector
 PIM:(dBc)  -150dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.15  Waterproof:  IP65 , RoHS

 Item Name:  40dB Power Tapper  Mailine Loss:  0.10±0.1dB
 Model:  PT-825-200-40CDI *  Insertion Loss:  0.10 dB
 Frequency:  800-2500MHz  Impedance:  50 Ω
 Coupling:  40±2.0 dB ***  Temperature:  -35- +75
 Power:  200W Average  Connector:  7/16(DIN)-Connector
 PIM:(dBc)  -150dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.15  Waterproof:  IP65 , RoHS

 Item Name:  20dB Power Tapper  Mailine Loss:  0.10±0.1dB
 Model:  PT-825-200-20CSM *  Insertion Loss:  0.10 dB
 Frequency:  800-2500MHz  Impedance:  50 Ω
 Coupling:  20±1.50 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  SMA-Connector
 PIM:(dBc)  -150dBc , 2X43dBm  Coupling Port:  SMA Male/ Female
 V.S.W.R:  1.15  Waterproof:  RoHS Compliant

 Item Name:  30dB Power Tapper  Mailine Loss:  0.10±0.1dB
 Model:  PT-825-200-30CSM *  Insertion Loss:  0.10 dB
 Frequency:  800-2500MHz  Impedance:  50 Ω
 Coupling:  30±1.50 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  SMA-Connector
 PIM:(dBc)  -150dBc , 2X43dBm  Coupling Port:  SMA Male/ Female
 V.S.W.R:  1.15  Waterproof:  RoHS Compliant

 Item Name:  40dB Power Tapper  Mailine Loss:  0.10±0.1dB
 Model:  PT-825-200-40CSM *  Insertion Loss:  0.10 dB
 Frequency:  800-2500MHz  Impedance:  50 Ω
 Coupling:  40±1.50 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  SMA-Connector
 PIM:(dBc)  -150dBc , 2X43dBm  Coupling Port:  SMA Male/ Female
 V.S.W.R:  1.15  Waterproof:  RoHS Compliant

800-2500MHz DC Pass Power Tapper


 Item Name:  DC Pass Power Tapper  Insertion Loss:  4 dB
 Model:  PTDP-825-200-3CNI *  DC Pass   All Port
 Frequency:  800-2500MHz  Impedance:  50 Ω
 Coupling:  3±0.8 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -150dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.35  Waterproof:  IP65 , RoHS

 Item Name:  DC Pass Power Tapper  Insertion Loss:  2.3 dB
 Model:  PTDP-825-200-5CNI *  DC Pass   All Port
 Frequency:  800-2500MHz  Impedance:  50 Ω
 Coupling:  4.7±0.8 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -150dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.35  Waterproof:  IP65 , RoHS

 Item Name:  DC Pass Power Tapper  Insertion Loss:  1.65 dB
 Model:  PTDP-825-200-6CNI *  DC Pass   All Port
 Frequency:  800-2500MHz  Impedance:  50 Ω
 Coupling:  6±1.0 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -150dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.35  Waterproof:  IP65 , RoHS

 Item Name:  DC Pass Power Tapper  Insertion Loss:  1 dB
 Model:  PTDP-825-200-8CNI *  DC Pass   All Port
 Frequency:  800-2500MHz  Impedance:  50 Ω
 Coupling:  8±1.0 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -150dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.35  Waterproof:  IP65 , RoHS

 Item Name:  DC Pass Power Tapper  Insertion Loss:  0.6 dB
 Model:  PTDP-825-200-10CNI *  DC Pass   All Port
 Frequency:  800-2500MHz  Impedance:  50 Ω
 Coupling:  10±1.0 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -150dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.35  Waterproof:  IP65 , RoHS

698-2700MHz Power Tapper


 Item Name:  5dB Power Tapper  Mailine Loss:  1.26±0.4 dB
 Model:  PT-727-200-5CNI *  Insertion Loss:  0.10 dB
 Frequency:  698-2700MHz  Impedance:  50 Ω
 Coupling:  5±0.8 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.35  Waterproof:  IP65 , RoHS

 Item Name:  6dB Power Tapper  Mailine Loss:  1.26±0.4 dB
 Model:  PT-727-200-6CNI *  Insertion Loss:  0.10 dB
 Frequency:  698-2700MHz  Impedance:  50 Ω
 Coupling:  6±0.8 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.35  Waterproof:  IP65 , RoHS

 Item Name:  7dB Power Tapper  Mailine Loss:  1.26±0.4 dB
 Model:  PT-727-200-7CNI *  Insertion Loss:  0.10 dB
 Frequency:  698-2700MHz  Impedance:  50 Ω
 Coupling:  7±0.8 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.35  Waterproof:  IP65 , RoHS

 Item Name:  8dB Power Tapper  Mailine Loss:  1.26±0.4 dB
 Model:  PT-727-200-8CNI *  Insertion Loss:  0.10 dB
 Frequency:  698-2700MHz  Impedance:  50 Ω
 Coupling:  8±0.8 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.35  Waterproof:  IP65 , RoHS

 Item Name:  10dB Power Tapper  Mailine Loss:  0.46±0.3 dB
 Model:  PT-727-200-10CNI *  Insertion Loss:  0.10 dB
 Frequency:  698-2700MHz  Impedance:  50 Ω
 Coupling:  10±1.0 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.35  Environment:  IP65 , RoHS

 Item Name:  13dB Power Tapper  Mailine Loss:  1.26±0.4 dB
 Model:  PT-727-200-13CNI *  Insertion Loss:  0.10 dB
 Frequency:  698-2700MHz  Impedance:  50 Ω
 Coupling:  13±1.0 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.35  Waterproof:  IP65 , RoHS

 Item Name:  15dB Power Tapper  Mailine Loss:  0.20±0.2 dB
 Model:  PT-727-200-15CNI *  Insertion Loss:  0.10 dB
 Frequency:  698-2700MHz  Impedance:  50 Ω
 Coupling:  15±1.20 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.35  Waterproof:  IP65 , RoHS

 Item Name:  20dB Power Tapper  Mailine Loss:  0.10±0.1dB
 Model:  PT-727-200-20CNI *  Insertion Loss:  0.10 dB
 Frequency:  698-2700MHz  Impedance:  50 Ω
 Coupling:  20±1.50 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.15  Waterproof:  IP65 , RoHS

 Item Name:  30dB Power Tapper  Mailine Loss:  0.10±0.1dB
 Model:  PT-727-200-30CNI *  Insertion Loss:  0.10 dB
 Frequency:  698-2700MHz  Impedance:  50 Ω
 Coupling:  30±1.50 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.15  Waterproof:  IP65 , RoHS

 Item Name:  40dB Power Tapper  Mailine Loss:  0.10±0.1dB
 Model:  PT-727-200-40CNI *  Insertion Loss:  0.10 dB
 Frequency:  698-2700MHz  Impedance:  50 Ω
 Coupling:  40±1.50 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.15  Waterproof:  IP65 , RoHS

 Item Name:  5dB Power Tapper  Mailine Loss:  1.65±0.5dB
 Model:  PT-727-200-5CDI *  Insertion Loss:  0.10 dB
 Frequency:  698-2700MHz  Impedance:  50 Ω
 Coupling:  5±0.8 dB ***  Temperature:  -35- +75
 Power:  200W Average  Connector:  7/16(DIN)-Connector
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.15  Waterproof:  IP65 , RoHS

 Item Name:  6dB Power Tapper  Mailine Loss:  1.26±0.4dB
 Model:  PT-727-200-6CDI *  Insertion Loss:  0.10 dB
 Frequency:  698-2700MHz  Impedance:  50 Ω
 Coupling:  6±0.8 dB ***  Temperature:  -35- +75
 Power:  200W Average  Connector:  7/16(DIN)-Connector
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.15  Waterproof:  IP65 , RoHS

 Item Name:  7dB Power Tapper  Mailine Loss:  1.00±0.3dB
 Model:  PT-727-200-7CDI *  Insertion Loss:  0.10 dB
 Frequency:  698-2700MHz  Impedance:  50 Ω
 Coupling:  7±0.8 dB ***  Temperature:  -35- +75
 Power:  200W Average  Connector:  7/16(DIN)-Connector
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.15  Waterproof:  IP65 , RoHS

 Item Name:  10dB Power Tapper  Mailine Loss:  0.46±0.3dB
 Model:  PT-727-200-10CDI *  Insertion Loss:  0.10 dB
 Frequency:  698-2700MHz  Impedance:  50 Ω
 Coupling:  10±1.0 dB ***  Temperature:  -35- +75
 Power:  200W Average  Connector:  7/16(DIN)-Connector
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.15  Waterproof:  IP65 , RoHS

 Item Name:  15dB Power Tapper  Mailine Loss:  0.20±0.2dB
 Model:  PT-727-200-15CDI *  Insertion Loss:  0.10 dB
 Frequency:  698-2700MHz  Impedance:  50 Ω
 Coupling:  15±1.2 dB ***  Temperature:  -35- +75
 Power:  200W Average  Connector:  7/16(DIN)-Connector
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.15  Waterproof:  IP65 , RoHS

 Item Name:  20dB Power Tapper  Mailine Loss:  0.10±0.1dB
 Model:  PT-727-200-20CDI *  Insertion Loss:  0.10 dB
 Frequency:  698-2700MHz  Impedance:  50 Ω
 Coupling:  20±1.50 dB ***  Temperature:  -35- +75
 Power:  200W Average  Connector:  7/16(DIN)-Connector
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.15  Waterproof:  IP65 , RoHS

 Item Name:  30dB Power Tapper  Mailine Loss:  0.10±0.1dB
 Model:  PT-727-200-30CDI *  Insertion Loss:  0.10 dB
 Frequency:  698-2700MHz  Impedance:  50 Ω
 Coupling:  30±1.50 dB ***  Temperature:  -35- +75
 Power:  200W Average  Connector:  7/16(DIN)-Connector
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.15  Waterproof:  IP65 , RoHS

 Item Name:  40dB Power Tapper  Mailine Loss:  0.10±0.1dB
 Model:  PT-727-200-40CDI *  Insertion Loss:  0.10 dB
 Frequency:  698-2700MHz  Impedance:  50 Ω
 Coupling:  40±1.50 dB ***  Temperature:  -35- +75
 Power:  200W Average  Connector:  7/16(DIN)-Connector
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.15  Waterproof:  IP65 , RoHS

698-2700MHz 7/16(DIN) + QMA Power Tapper


 Item Name:  20dB Power Tapper  Mailine Loss:  0.10±0.1dB
 Model:  PT-727-200-20CDQM *  Insertion Loss:  0.10 dB
 Frequency:  698-2700MHz  Impedance:  50 Ω
 Coupling:  20±1.50 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  7/16(DIN)-Connector
 PIM:(dBc)  -150dBc , 2X43dBm  Coupling Port:  QMA Female
 V.S.W.R:  1.15  Waterproof:  RoHS Compliant

 Item Name:  30dB Power Tapper  Mailine Loss:  0.10±0.1dB
 Model:  PT-727-200-30CDQM *  Insertion Loss:  0.10 dB
 Frequency:  698-2700MHz  Impedance:  50 Ω
 Coupling:  30±1.50 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  7/16(DIN)-Connector
 PIM:(dBc)  -150dBc , 2X43dBm  Coupling Port:  QMA Female
 V.S.W.R:  1.15  Waterproof:  RoHS Compliant

 Item Name:  40dB Power Tapper  Mailine Loss:  0.10±0.1dB
 Model:  PT-727-200-40CDQM *  Insertion Loss:  0.10 dB
 Frequency:  698-2700MHz  Impedance:  50 Ω
 Coupling:  40±1.50 dB **  Temperature:  -35- +75
 Power:  200W Average  Connector:  7/16(DIN)-Connector
 PIM:(dBc)  -150dBc , 2X43dBm  Coupling Port:  QMA Female
 V.S.W.R:  1.15  Waterproof:  RoHS Compliant

698-2700MHz 4.3/10 DIN + QMA Power Tapper


 Item Name:  20dB Power Tapper  Mailine Loss:  0.10±0.1dB
 Model:  PT-727-200-20C43DQM*  Insertion Loss:  0.10 dB
 Frequency:  698-2700MHz  Impedance:  50 Ω
 Coupling:  20±1.50 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  4.3/10 DIN
 PIM:(dBc)  -150dBc , 2X43dBm  Coupling Port:  QMA Female
 V.S.W.R:  1.15  Waterproof:  RoHS Compliant

 Item Name:  30dB Power Tapper  Mailine Loss:  0.10±0.1dB
 Model:  PT-727-200-30C43DQM*  Insertion Loss:  0.10 dB
 Frequency:  698-2700MHz  Impedance:  50 Ω
 Coupling:  30±1.50 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  4.3/10 DIN
 PIM:(dBc)  -150dBc , 2X43dBm  Coupling Port:  QMA Female
 V.S.W.R:  1.15  Waterproof:  RoHS Compliant

 Item Name:  40dB Power Tapper  Mailine Loss:  0.10±0.1dB
 Model:  PT-727-200-40C43DQM*  Insertion Loss:  0.10 dB
 Frequency:  698-2700MHz  Impedance:  50 Ω
 Coupling:  40±1.50 dB **  Temperature:  -35- +75
 Power:  200W Average  Connector:  4.3/10 DIN
 PIM:(dBc)  -150dBc , 2X43dBm  Coupling Port:  QMA Female
 V.S.W.R:  1.15  Waterproof:  RoHS Compliant

698-2700MHz N + QMA Power Tapper


 Item Name:  20dB Power Tapper  Mailine Loss:  0.10±0.1dB
 Model:  PT-727-200-20CNQM *  Insertion Loss:  0.10 dB
 Frequency:  698-2700MHz  Impedance:  50 Ω
 Coupling:  20±1.50 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Connector
 PIM:(dBc)  -150dBc , 2X43dBm  Coupling Port:  QMA Female
 V.S.W.R:  1.15  Waterproof:  RoHS Compliant

 Item Name:  30dB Power Tapper  Mailine Loss:  0.10±0.1dB
 Model:  PT-727-200-30CNQM *  Insertion Loss:  0.10 dB
 Frequency:  698-2700MHz  Impedance:  50 Ω
 Coupling:  30±1.50 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Connector
 PIM:(dBc)  -150dBc , 2X43dBm  Coupling Port:  QMA Female
 V.S.W.R:  1.15  Waterproof:  RoHS Compliant

 Item Name:  40dB Power Tapper  Mailine Loss:  0.10±0.1dB
 Model:  PT-727-200-40CNQM *  Insertion Loss:  0.10 dB
 Frequency:  698-2700MHz  Impedance:  50 Ω
 Coupling:  40±1.50 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Connector
 PIM:(dBc)  -150dBc , 2X43dBm  Coupling Port:  QMA Female
 V.S.W.R:  1.15  Waterproof:  RoHS Compliant

698-2700MHz SMA Power Tapper


 Item Name:  20dB Power Tapper  Mailine Loss:  0.10±0.1dB
 Model:  PT-727-200-20CSM *  Insertion Loss:  0.10 dB
 Frequency:  698-2700MHz  Impedance:  50 Ω
 Coupling:  20±1.50 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  SMA-Connector
 PIM:(dBc)  -150dBc , 2X43dBm  Coupling Port:  SMA Male/ Female
 V.S.W.R:  1.15  Waterproof:  RoHS Compliant

 Item Name:  30dB Power Tapper  Mailine Loss:  0.10±0.1dB
 Model:  PT-727-200-30CSM *  Insertion Loss:  0.10 dB
 Frequency:  698-2700MHz  Impedance:  50 Ω
 Coupling:  30±1.50 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  SMA-Connector
 PIM:(dBc)  -150dBc , 2X43dBm  Coupling Port:  SMA Male/ Female
 V.S.W.R:  1.15  Waterproof:  RoHS Compliant

 Item Name:  40dB Power Tapper  Mailine Loss:  0.10±0.1dB
 Model:  PT-727-200-40CSM *  Insertion Loss:  0.10 dB
 Frequency:  698-2700MHz  Impedance:  50 Ω
 Coupling:  40±1.50 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  SMA-Connector
 PIM:(dBc)  -150dBc , 2X43dBm  Coupling Port:  SMA Male/ Female
 V.S.W.R:  1.15  Waterproof:  RoHS Compliant

560-2700MHz (578-2700MHz) Power Tapper


 Item Name:  5dB Power Tapper  Mailine Loss:  1.26±0.4 dB
 Model:  PT-527-200-5CNI *  Insertion Loss:  0.10 dB
 Frequency:  560-2700MHz  Impedance:  50 Ω
 Coupling:  5±0.8 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.35  Waterproof:  IP65 , RoHS

 Item Name:  6dB Power Tapper  Mailine Loss:  1.26±0.4 dB
 Model:  PT-527-200-6CNI *  Insertion Loss:  0.10 dB
 Frequency:  560-2700MHz  Impedance:  50 Ω
 Coupling:  6±0.8 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.35  Waterproof:  IP65 , RoHS

 Item Name:  6dB Power Tapper  Mailine Loss:  1.26±0.4 dB
 Model:  PT-527-200-7CNI *  Insertion Loss:  0.10 dB
 Frequency:  560-2700MHz  Impedance:  50 Ω
 Coupling:  7±0.8 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.35  Waterproof:  IP65 , RoHS

 Item Name:  6dB Power Tapper  Mailine Loss:  1.26±0.4 dB
 Model:  PT-527-200-8CNI *  Insertion Loss:  0.10 dB
 Frequency:  560-2700MHz  Impedance:  50 Ω
 Coupling:  8±0.8 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.35  Waterproof:  IP65 , RoHS

 Item Name:  6dB Power Tapper  Mailine Loss:  1.26±0.4 dB
 Model:  PT-527-200-10CNI *  Insertion Loss:  0.10 dB
 Frequency:  560-2700MHz  Impedance:  50 Ω
 Coupling:  10±1.0 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.35  Waterproof:  IP65 , RoHS

 Item Name:  6dB Power Tapper  Mailine Loss:  1.26±0.4 dB
 Model:  PT-527-200-15CNI *  Insertion Loss:  0.10 dB
 Frequency:  560-2700MHz  Impedance:  50 Ω
 Coupling:  15±1.0 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.35  Waterproof:  IP65 , RoHS

 Item Name:  6dB Power Tapper  Mailine Loss:  1.26±0.4 dB
 Model:  PT-527-200-20CNI *  Insertion Loss:  0.10 dB
 Frequency:  560-2700MHz  Impedance:  50 Ω
 Coupling:  20±1.20 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.35  Waterproof:  IP65 , RoHS

 Item Name:  6dB Power Tapper  Mailine Loss:  1.26±0.4 dB
 Model:  PT-527-200-30CNI *  Insertion Loss:  0.10 dB
 Frequency:  560-2700MHz  Impedance:  50 Ω
 Coupling:  30±1.50 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.35  Waterproof:  IP65 , RoHS

 Item Name:  6dB Power Tapper  Mailine Loss:  1.26±0.4 dB
 Model:  PT-527-200-40CNI *  Insertion Loss:  0.10 dB
 Frequency:  560-2700MHz  Impedance:  50 Ω
 Coupling:  40±1.50 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.35  Waterproof:  IP65 , RoHS

1700-2500MHz Power Tapper


 Item Name:  6dB Power Tapper  Mailine Loss:  1.26±0.4dB
 Model:  PT-1725-200-6CNI *  Insertion Loss:  0.10 dB
 Frequency:  1700-2500MHz  Impedance:  50 Ω
 Coupling:  6±0.80 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.15  Waterproof:  IP65 , RoHS

 Item Name:  10dB Power Tapper  Mailine Loss:  0.46±0.3dB
 Model:  PT-1725-200-10CNI *  Insertion Loss:  0.10 dB
 Frequency:  1700-2500MHz  Impedance:  50 Ω
 Coupling:  10±1.00 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.15  Waterproof:  IP65 , RoHS

 Item Name:  15dB ower Tapper  Mailine Loss:  0.20±0.2dB
 Model:  PT-1725-200-15CNI *  Insertion Loss:  0.10 dB
 Frequency:  1700-2500MHz  Impedance:  50 Ω
 Coupling:  15±1.20 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.15  Waterproof:  IP65 , RoHS

 Item Name:  20dB Power Tapper  Mailine Loss:  0.10±0.1dB
 Model:  PT-1725-200-20CNI *  Insertion Loss:  0.10 dB
 Frequency:  1700-2500MHz  Impedance:  50 Ω
 Coupling:  20±1.50 dB  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -153dBc , 2X43dBm **  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.15  Waterproof:  IP65 , RoHS

350-2700MHz Power Tapper


 Item Name:  6dB Power Tapper  Return Loss:  19 (Input)
 Model:  PT-327-200-6CNI/H  Insertion Loss:  1.7 dB
 Frequency:  350-2700MHz  Impedance:  50 Ω
 Coupling:  6±0.8 dB  Temperature:  -40- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -160dBc , 2X43dBm  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.25  Waterproof:  IP65 , RoHS

 Item Name:  7dB Power Tapper  Return Loss:  19 (Input)
 Model:  PT-327-200-7CNI/H  Insertion Loss:  1.5 dB
 Frequency:  350-2700MHz  Impedance:  50 Ω
 Coupling:  7±1.0 dB  Temperature:  -40- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -160dBc , 2X43dBm  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.25  Waterproof:  IP65 , RoHS

 Item Name:  8dB Power Tapper  Return Loss:  19 (Input)
 Model:  PT-327-200-8CNI/H  Insertion Loss:  1.2 dB
 Frequency:  350-2700MHz  Impedance:  50 Ω
 Coupling:  8±1.0 dB  Temperature:  -40- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -160dBc , 2X43dBm  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.25  Waterproof:  IP65 , RoHS

 Item Name:  10dB Power Tapper  Return Loss:  20.8 (Input)
 Model:  PT-327-200-10CNI/H  Insertion Loss:  0.8 dB
 Frequency:  350-2700MHz  Impedance:  50 Ω
 Coupling:  10±1.0 dB  Temperature:  -40- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -160dBc , 2X43dBm  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.25  Waterproof:  IP65 , RoHS

 Item Name:  13dB Power Tapper  Return Loss:  20.8 (Input)
 Model:  PT-327-200-13CNI/H  Insertion Loss:  0.6 dB
 Frequency:  350-2700MHz  Impedance:  50 Ω
 Coupling:  13±1.0 dB  Temperature:  -40- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -160dBc , 2X43dBm  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.25  Waterproof:  IP65 , RoHS

 Item Name:  15dB Power Tapper  Return Loss:  20.8 (Input)
 Model:  PT-327-200-15CNI/H  Insertion Loss:  0.5 dB
 Frequency:  350-2700MHz  Impedance:  50 Ω
 Coupling:  15±1.2 dB  Temperature:  -40- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -160dBc , 2X43dBm  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.25  Waterproof:  IP65 , RoHS

 Item Name:  20dB Power Tapper  Return Loss:  20.8 (Input)
 Model:  PT-327-200-20CNI/H  Insertion Loss:  0.3 dB
 Frequency:  350-2700MHz  Impedance:  50 Ω
 Coupling:  20±1.5 dB  Temperature:  -40- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -160dBc , 2X43dBm  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.25  Waterproof:  IP65 , RoHS

 Item Name:  30dB Power Tapper  Return Loss:  20.8 (Input)
 Model:  PT-327-200-30CNI/H  Insertion Loss:  0.2 dB
 Frequency:  350-2700MHz  Impedance:  50 Ω
 Coupling:  30±1.5 dB  Temperature:  -40- +75
 Power:  200W Average  Connector:  N-Female
 PIM:(dBc)  -160dBc , 2X43dBm  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.25  Waterproof:  IP65 , RoHS

 Item Name:  6dB Power Tapper  Return Loss:  19 (Input)
 Model:  PT-327-200-6CDI/H  Insertion Loss:  1.7 dB
 Frequency:  350-2700MHz  Impedance:  50 Ω
 Coupling:  6±0.8 dB  Temperature:  -40- +75
 Power:  200W Average  Connector:  DIN-Female
 PIM:(dBc)  -160dBc , 2X43dBm  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.25  Waterproof:  IP65 , RoHS

 Item Name:  7dB Power Tapper  Return Loss:  19 (Input)
 Model:  PT-327-200-7CDI/H  Insertion Loss:  1.5 dB
 Frequency:  350-2700MHz  Impedance:  50 Ω
 Coupling:  7±1.0 dB  Temperature:  -40- +75
 Power:  200W Average  Connector:  DIN-Female
 PIM:(dBc)  -160dBc , 2X43dBm  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.25  Waterproof:  IP65 , RoHS

 Item Name:  8dB Power Tapper  Return Loss:  19 (Input)
 Model:  PT-327-200-8CDI/H  Insertion Loss:  1.2 dB
 Frequency:  350-2700MHz  Impedance:  50 Ω
 Coupling:  8±1.0 dB  Temperature:  -40- +75
 Power:  200W Average  Connector:  DIN-Female
 PIM:(dBc)  -160dBc , 2X43dBm  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.25  Waterproof:  IP65 , RoHS

 Item Name:  10dB Power Tapper  Return Loss:  20.8 (Input)
 Model:  PT-327-200-10CDI/H  Insertion Loss:  0.8 dB
 Frequency:  350-2700MHz  Impedance:  50 Ω
 Coupling:  10±1.0 dB  Temperature:  -40- +75
 Power:  200W Average  Connector:  DIN-Female
 PIM:(dBc)  -160dBc , 2X43dBm  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.25  Waterproof:  IP65 , RoHS

 Item Name:  13dB Power Tapper  Return Loss:  20.8 (Input)
 Model:  PT-327-200-13CDI/H  Insertion Loss:  0.6 dB
 Frequency:  350-2700MHz  Impedance:  50 Ω
 Coupling:  13±1.0 dB  Temperature:  -40- +75
 Power:  200W Average  Connector:  DIN-Female
 PIM:(dBc)  -160dBc , 2X43dBm  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.25  Waterproof:  IP65 , RoHS

 Item Name:  15dB Power Tapper  Return Loss:  20.8 (Input)
 Model:  PT-327-200-15CDI/H  Insertion Loss:  0.5 dB
 Frequency:  350-2700MHz  Impedance:  50 Ω
 Coupling:  15±1.2 dB  Temperature:  -40- +75
 Power:  200W Average  Connector:  DIN-Female
 PIM:(dBc)  -160dBc , 2X43dBm  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.25  Waterproof:  IP65 , RoHS

 Item Name:  20dB Power Tapper  Return Loss:  20.8 (Input)
 Model:  PT-327-200-20CDI/H  Insertion Loss:  0.3 dB
 Frequency:  350-2700MHz  Impedance:  50 Ω
 Coupling:  20±1.5 dB  Temperature:  -40- +75
 Power:  200W Average  Connector:  DIN-Female
 PIM:(dBc)  -160dBc , 2X43dBm  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.25  Waterproof:  IP65 , RoHS

 Item Name:  30dB Power Tapper  Return Loss:  20.8 (Input)
 Model:  PT-327-200-30CDI/H  Insertion Loss:  0.2 dB
 Frequency:  350-2700MHz  Impedance:  50 Ω
 Coupling:  30±1.5 dB  Temperature:  -40- +75
 Power:  200W Average  Connector:  DIN-Female
 PIM:(dBc)  -160dBc , 2X43dBm  Annotation:  Indoor/Outdoor Use
 V.S.W.R:  1.25  Waterproof:  IP65 , RoHS

Power Tapper Install Bracket


 Item Name:  Install Bracket  Applicable:  5~15 dB Tapper
 Model:  PT-IBL  Annotation:  Indoor/Outdoor Use
 Material:  304SS  Waterproof:  RoHS Compliant

 Item Name:  Install Bracket  Applicable:  20~50 dB Tapper
 Model:  PT-IBH  Annotation:  Indoor/Outdoor Use
 Material:  304SS  Waterproof:  RoHS Compliant

  * Power Tapper Install Bracket Include.

   ** Can Custom Made with -160dBc @ 2X43dBm

   *** The Coupler Connector Can Custom Made With N Male/Female or 7/16(DIN) Male/Female.

POWER TAPPER
