GELVO TECHNOLOGY Combiner Duplexer

COMBINER

Item Name:

DC Pass Dual Combiner

DC/AISG:

By Pass

Model:

DPX-1718/1927-200W-43F

Lightning Protection:

10KA

Frequency:

1710-1880,1920-2690MHz

Impedance:

50 Ω

V.S.W.R:

≤ 1.25

Temperature:

-20℃- +65℃

Power:

200W Average

Connector:

4.3/10-Female

Isolation:

≥50dB

Annotation:

Indoor/Outdoor

PIM:

≤-160dBc@2X43dBm

Environment:

IP65

Item Name:

DC Pass Dual Combiner

DC/AISG:

By Pass

Model:

CB/TRP-617-4200-43F/DP

Lightning Protection:

10KA

Frequency:

617-4200MHz

Impedance:

50 Ω

V.S.W.R:

≤ 1.30

Temperature:

-20℃- +65℃

Power:

250W Average

Connector:

4.3/10-Female

Isolation:

≥50dB

Annotation:

Indoor/Outdoor

PIM:

≤-160dBc@2X43dBm

Environment:

IP65

Item Name:

DC Pass Dual Combiner

DC/AISG:

By Pass

Model:

DPX-727-LTE-DF

Lightning Protection:

10KA

Frequency:

698-2180,2300-2690MHz

Impedance:

50 Ω

V.S.W.R:

≤ 1.22

Temperature:

-20℃- +65℃

Power:

300W Average

Connector:

DIN-Female

Isolation:

≥60dB

Annotation:

Indoor/Outdoor

PIM:

≤-160dBc@2X43dBm

Environment:

IP65

Item Name:

DC Pass Dual Combiner

DC/AISG:

By Pass

Model:

DPX-1727-LTE-DF

Lightning Protection:

10KA

Frequency:

1695-2180,2300-2690MHz

Impedance:

50 Ω

V.S.W.R:

≤ 1.22

Temperature:

-20℃- +65℃

Power:

300W Average

Connector:

DIN-Female

Isolation:

≥60dB

Annotation:

Indoor/Outdoor

PIM:

≤-160dBc@2X43dBm

Environment:

IP65

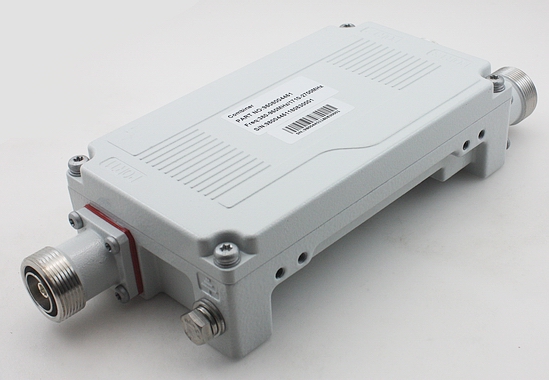

Item Name:

DC Pass Dual Combiner

DC/AISG:

By Pass

Model:

DPX-327-LTE-DF

Lightning Protection:

10KA

Frequency:

380-960,1710-2700MHz

Impedance:

50 Ω

V.S.W.R:

≤ 1.22

Temperature:

-20℃- +65℃

Power:

300W Average

Connector:

DIN-Female

Isolation:

≥60dB

Annotation:

Indoor/Outdoor

PIM:

≤-150dBc@2X43dBm

Environment:

IP65

Item Name:

DC Pass Dual Combiner

DC/AISG:

By Pass

Model:

DPX-727-LTE-DF

Lightning Protection:

10KA

Frequency:

790-960,1710-2700MHz

Impedance:

50 Ω

V.S.W.R:

≤ 1.22

Temperature:

-20℃- +65℃

Power:

300W Average

Connector:

DIN-Female

Isolation:

≥60dB

Annotation:

Indoor/Outdoor

PIM:

≤-150dBc@2X43dBm

Environment:

IP65

Item Name:

Dual Band Combiner

Isolation:

≥85 dB

Model:

CMB-2IN-600W-XTDF

Impedance:

50 Ω

Frequency
Range:

800-960 MHz

Temperature:

-30℃- +80℃

1710-2170 MHz

Connector:

DIN-Female

V.S.W.R:

≤ 1.20

Annotation:

Indoor Use

PIM:

-140,2x43dBm

Humidity:

0－95％

Power:

600W Average

Environment:

IP65

Item Name:

Dual Band Combiner

Isolation:

≥85 dB

Model:

CMB-4IN-600W-XTDF

Impedance:

50 Ω

Frequency
Range:

800-960 MHz

Temperature:

-30℃- +80℃

1710-2170 MHz

Connector:

DIN-Female

V.S.W.R:

≤ 1.20

Annotation:

Indoor Use

PIM:

-140,2x43dBm

Humidity:

0－95％

Power:

600W Average

Environment:

IP65

Item Name:

Triplexer Band Combiner

Isolation:

≥50dB

Model:

CMB-2IN-100W-XTDT

Impedance:

50 Ω

Frequency
Range:

800-960 MHz

Intermodulation:

-130,2x43dBm

1710-1880 MHz

Temperature:

-30℃- +80℃

1920-2170 MHz

Connector:

DIN-Female

V.S.W.R:

≤ 1.25

Annotation:

Indoor Use

Power:

100W Average

Environment:

IP65

Item Name:

Triplexer Band Combiner

Isolation:

≥50dB

Model:

CMB-4IN-100W-XTDT

Impedance:

50 Ω

Frequency
Range:

800-960 MHz

Intermodulation:

-130,2x43dBm

1710-1880 MHz

Temperature:

-30℃- +80℃

1920-2170 MHz

Connector:

DIN-Female

V.S.W.R:

≤ 1.25

Annotation:

Indoor Use

Power:

100W Average

Environment:

IP65

Item Name:

Dual Band Combiner

Pass Band Ripple:

≤ 0.2 dB

Model:

CMB-2IN-GD-NF

Insertion Loss:

≤ 0.4 dB

Frequency:

698-900,1710-2300MHz

Impedance:

50 Ω

V.S.W.R:

≤ 1.22

Temperature:

-40℃- +80℃

Power:

150W Average

Connector:

N-Female

Outside Band

≥50@1710-2300MHz

Annotation:

Indoor Use

Rejection(dB):

≥50@698-900MHz

Environment:

IP65

Item Name:

Dual Band Combiner

Pass Band Ripple:

≤ 0.2 dB

Model:

CMB-2IN-GD-NF

Insertion Loss:

≤ 0.4 dB

Frequency:

885-909,1710-1880MHz

Impedance:

50 Ω

V.S.W.R:

≤ 1.22

Temperature:

-40℃- +80℃

Power:

100W Average

Connector:

N-Female

Outside Band

≥80@1710-1880MHz

Annotation:

Indoor Use

Rejection(dB):

≥80@885-909MHz

Environment:

IP65

Item Name:

Dual Band Combiner

Pass Band Ripple:

≤ 0.2 dB

Model:

CMB-2IN-CGDPW-NF

Insertion Loss:

≤ 0.4 dB

Frequency:

800-2200,2400-2500MHz

Impedance:

50 Ω

V.S.W.R:

≤ 1.22

Temperature:

-40℃- +80℃

Power:

100W Average

Connector:

N-Female

Outside Band

≥90@2400-2500MHz

Annotation:

Indoor Use

Rejection(dB):

≥90@800-2200MHz

Environment:

IP65

Item Name:

Dual Band Combiner

Pass Band Ripple:

≤ 0.2 dB

Model:

CBM-2IN-DW-NF

Insertion Loss:

≤ 0.6 dB

Frequency:

824-880,909-960MHz

Impedance:

50 Ω

V.S.W.R:

≤ 1.25

Temperature:

-40℃- +80℃

Power:

200W Average

Connector:

N-Female

Outside Band

≥80@909-960MHz

Annotation:

Indoor Use

Rejection(dB):

≥80@824-880MHz

Environment:

IP65

Item Name:

Dual Band Combiner

Pass Band Ripple:

≤ 0.8 dB

Model:

CMB-75/80-DUP/SMA

Insertion Loss:

≤ 1.0 dB

Frequency:

758-776,788-806MHz

Impedance:

50 Ω

V.S.W.R:

≤ 1.25

Temperature:

-40℃- +80℃

Power:

25W Average

Connector:

N-Female

Outside Band

≥80@788-806MHz

Annotation:

Indoor Use

Rejection(dB):

≥80@758-776MHz

Environment:

IP65

Item Name:

Triplexer Band Combiner

Pass Band Ripple:

≤ 0.5 dB

Model:

CBM-2IN-GD-NF

Insertion Loss:

≤ 0.8 dB

Frequency:

1710-1880,2110-2170MHz

Impedance:

50 Ω

V.S.W.R:

≤ 1.22

Temperature:

-40℃- +80℃

Power:

100W Average

Connector:

N-Female

Outside Band

≥80@2110-2170MHz

Annotation:

Indoor Use

Rejection(dB):

≥80@1710-1880MHz

Environment:

IP65

Item Name:

Triplexer Band Combiner

Pass Band Ripple:

≤ 0.3 dB

Model:

CBM-3IN-CDW-NF

Insertion Loss:

≤ 0.3 dB

Frequency
Range:

824-880 MHz

Impedance:

50 Ω

1745-1850 MHz

Temperature:

-40℃- +80℃

2400-2500 MHz

Connector:

N-Female

V.S.W.R:

≤ 1.22

Annotation:

Indoor Use

Power:

200W Average

Environment:

IP65

Item Name:

Triplexer Band Combiner

Pass Band Ripple:

≤ 0.4 dB

Model:

CBM-3IN-EGDW-NF

Insertion Loss:

≤ 0.3 dB

Frequency
Range:

885-960 MHz

Impedance:

50 Ω

1710-1880 MHz

Temperature:

-40℃- +80℃

1920-2170 MHz

Connector:

N-Female

V.S.W.R:

≤ 1.25

Annotation:

Indoor Use

Power:

200W Average

Environment:

IP65

Item Name:

Triplexer Band Combiner

Pass Band Ripple:

≤ 0.3 dB

Model:

CBM-3IN-EGDW-NF

Insertion Loss:

≤ 0.4,0.6,0.6 dB

Frequency
Range:

885-960 MHz

Impedance:

50 Ω

1710-1850 MHz

Temperature:

-40℃- +80℃

1920-2170 MHz

Connector:

N-Female

V.S.W.R:

≤ 1.22

Annotation:

Indoor Use

Power:

100W Average

Environment:

IP65

Item Name:

Four Band Combiner

Power:

100W Average

Model:

CBM-4IN-CGDW-NF

Pass Band Ripple:

≤ 0.3 dB

Frequency
Range:

825-880 MHz

Impedance:

50 Ω

890-960 MHz

Temperature:

-40℃- +80℃

1710-1850 MHz

Connector:

N-Female

1920-2170 MHz

Annotation:

Indoor Use

V.S.W.R:

≤ 1.22

Environment:

IP65

Item Name:

Triplexer Band Combiner

Pass Band Ripple:

≤ 0.8 dB

Model:

CMB-76/80/86-TRP/SMA

Insertion Loss:

≤ 2.0 dB

Frequency
Range:

758-776 MHz

Impedance:

50 Ω

788-824 MHz

Temperature:

-40℃- +80℃

851-869 MHz

Connector:

N-Female

V.S.W.R:

≤ 1.25

Annotation:

Indoor Use

Power:

50W Average

Environment:

IP65

POINT OF INTERFACE COMBINING (POI)

Item Name:	POI	Return Loss:	≤15 dB
Model:	POI-7B4A-GDW/NF	Isolation:	≥ 20 dB / ≥ 80 dB
BTS port:	7 Port	Impedance:	50 Ω
Antenna port:	4 Port	Temperature:	-5℃- +60℃
V.S.W.R:	≤ 1.30	Connector:	N-Female
Power:	50W Average	Annotation:	Indoor Use

Item Name:	POI	Return Loss:	≤15 dB
Model:	POI-9B4A-GDW/NF	Isolation:	≥20 dB / ≥80 dB
BTS port:	9 Port	Impedance:	50 Ω
Antenna port:	4 Port	Temperature:	-5℃- +60℃
V.S.W.R:	≤ 1.30	Connector:	N-Female
Power:	50W Average	Annotation:	Indoor Use

Item Name:	POI	Return Loss:	≤18 dB
Model:	POI-7B4A-EDW/NF	Isolation:	≥40 dB / ≥80 dB
BTS port:	7 Port	Impedance:	50 Ω
Antenna port:	4 Port	Temperature:	-5℃- +60℃
V.S.W.R:	≤ 1.30	Connector:	N-Female
Power:	100W Average	Annotation:	Indoor Use

Item Name:	POI	Return Loss:	≤18 dB
Model:	POI-9B4A-EDW/NF	Isolation:	≥40 dB / ≥80 dB
BTS port:	9 Port	Impedance:	50 Ω
Antenna port:	4 Port	Temperature:	-5℃- +60℃
V.S.W.R:	≤ 1.30	Connector:	N-Female
Power:	100W Average	Annotation:	Indoor Use
