  PRODUCT >> DUPLEXER

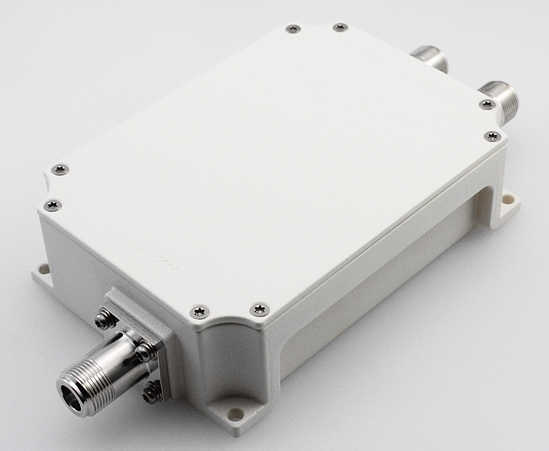

 Item Name:  Indoor Duplexer  Band Ripple:  0.5 dB
 Model:  DP-UMTS2100-80W-XNF  Insertion Loss:   0.8 dB
 Frequency
 Range:
 Rx.1920-1980 MHz  Impedance:  50 Ω
 Tx.2110-2170 MHz  Temperature:  -40- +85
 V.S.W.R:  1.25  Connector:  N-Female
 Power:  80W Average  Annotation:  Indoor Use

 Item Name:  Indoor Duplexer  Band Ripple:  0.5 dB
 Model:  DP-DCS1800-100W-XNF  Insertion Loss:   1.5 dB
 Frequency
 Range:
 Rx.1710-1755 MHz  Impedance:  50 Ω
 Tx.1805-1850 MHz  Temperature:  -40- +85
 V.S.W.R:  1.25  Connector:  N-Female
 Power:  80W Average  Annotation:  Indoor Use

 Item Name:  Indoor Duplexer  Band Ripple:  1.0 dB
 Model:  DP-GSM900-150W-XNF  Insertion Loss:   1.6 dB
 Frequency
 Range:
 Rx.880-910 MHz  Impedance:  50 Ω
 Tx.925-960 MHz  Temperature:  -40- +85
 V.S.W.R:  1.25  Connector:  N-Female
 Power:  80W Average  Annotation:  Indoor Use

 Item Name:  Indoor/Outdoor Duplexer  Band Ripple:  0.8 dB
 Model:  DP-GSM800-200W-XNF  Insertion Loss:   1.6 dB
 Frequency
 Range:
 Rx.764-800 MHz  Impedance:  50 Ω
 Tx.806-869 MHz  Temperature:  -40- +85
 V.S.W.R:  1.25  Connector:  7/16(DIN)-F
 Power:  200W Average  Annotation:  Indoor/Outdoor

DUPLEXER
