  PRODUCT >> OUTDOOR ANTENNAE

Outdoor Antennas

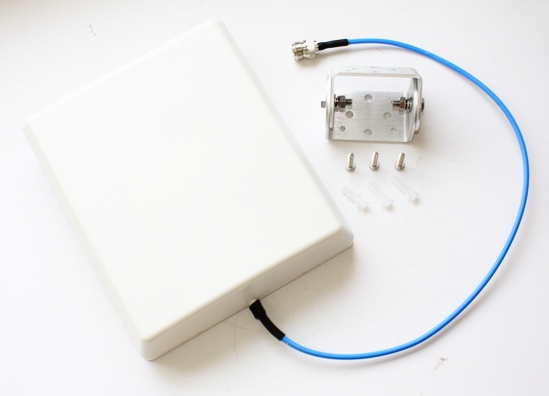

 Item Name:  Directional Panel Antenna  Beamwidth H:  30/45° ±6°
 Model:  PA-727-12DBN/OD  Beamwidth V:  45/60° ±6°
 Class:  Directional Panel  Polarization:  Vertical
 Frequency:  698-960,1710-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  256X170X56mm
 Gain:  11/12 dB  Weight:  0.50kg
 VSWR:  < 1.6  Remark:  Aluminum Plate

 Item Name:  Directional Panel Antenna  Beamwidth H:  68° ±10°
 Model:  PA-825-8DBN/OD  Beamwidth V:  58° ±10°
 Class:  Directional Panel  Polarization:  Vertical
 Frequency:  806-960,1710-2500MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  210X180X45mm
 Gain:  8 dB  Weight:  0.75kg
 VSWR:  < 1.5  Remark:  Aluminum Plate
 Item Name:  Directional Panel Antenna  Beamwidth H:  68° ±10°
 Model:  PA-825-8DBNH/OD  Beamwidth V:  58° ±10°
 Class:  Directional Panel  Polarization:  Vertical
 Frequency:  806-960,1710-2500MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  210X180X45mm
 Gain:  8 dB  Weight:  0.75kg
 VSWR:  < 1.5  (PIM< -140dBc) *  Remark:  Aluminum Plate
 Item Name:  Directional Panel Antenna  Beamwidth H:  75~115° ±10°
 Model:  PA-727-8DBNE/OD  Beamwidth V:  58° ±10°
 Class:  Directional Panel  Polarization:  Vertical
 Frequency:  698-960,1710-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  210X180X45mm
 Gain:  8 dB  Weight:  0.75kg
 VSWR:  < 1.5  Remark:  Aluminum Plate
 Item Name:  Directional Panel Antenna  Beamwidth H:  75~115° ±10°
 Model:  PA-727-8DBNH/OD  Beamwidth V:  58° ±10°
 Class:  Directional Panel  Polarization:  Vertical
 Frequency:  698-960,1710-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  210X180X45mm
 Gain:  8 dB  Weight:  0.75kg
 VSWR:  < 1.5  (PIM< -140dBc) *  Remark:  Aluminum Plate

GPS Timing Reference Antennas
 Item Name:  GPS Timing Antenna  3dB Beamwidth  110 ±10
 Model:  GPS-1575-28DBN  Front to Back:  10dB MIN
 Class:  Timing Antenna  Axial Ratio:  5dB MAX
 Frequency:  1575.42 ±5MHz  Voltage:  DC3.5~9V
 Noise Figure:  2.7 dB MAX  Current:  25mA MAX
 Gain:  28 dB  Impedance:  50 Ω , N/F
 VSWR:  ≤ 2.5  Weight:  1.0kg
 Item Name:  GPS Timing Antenna  3dB Beamwidth  110 ±10
 Model:  GPS-1116-43DBN  Front to Back:  10dB MIN
 Class:  Timing Antenna  Axial Ratio:  5dB MAX
 Frequency:  1166-1218MHz  Voltage:  DC3~12V
 1559-1606MHz  Current:  45mA MAX
 Gain:  43 dB  Impedance:  50 Ω , N/F
 VSWR:  ≤ 1.8  Weight:  1.0kg
 Item Name:  GPS Timing Antenna  3dB Beamwidth  110 ±10
 Model:  GPS-1575-38DBN  Front to Back:  10dB MIN
 Class:  Timing Antenna  Axial Ratio:  5dB MAX
 Frequency:  1575.42 ±5MHz  Voltage:  DC3.5~9V
 Noise Figure:  2.7 dB MAX  Current:  25mA MAX
 Gain:  38 dB  Impedance:  50 Ω , N/F
 VSWR:  ≤ 2.5  Weight:  1.0kg
 Item Name:  GNSS Timing Antenna  Polarization:  RHCP
 Model:  GNSS-11-16-40DBT/Z  Front to Back:  10dB MIN
 Class:  Timing Antenna  Axial Ratio:  3dB MAX
 Frequency:  GPS,GLONASS,Galileo  Voltage:  DC3.3~12V
 Noise Figure:  2.5 dB MAX  Current:  45mA MAX
 Gain:  40 dB  Impedance:  50 Ω , TNC/F
 VSWR:  ≤ 2.0  Weight:  1.0kg
 Item Name:  GNSS Timing Antenna  Polarization:  RHCP
 Model:  GNSS-11-17-40DBT/B  Horizontal:  360
 Class:  Timing Antenna  Axial Ratio:  3dB MAX
 Frequency:  GPS,GLONASS,Galileo  Voltage:  DC3.3~16V
 Noise Figure:  2.0 dB MAX  Current:  45mA MAX
 Gain:  40 dB (LNA)  Impedance:  50 Ω , TNC/F
 VSWR:  ≤ 2.0  Weight:  1.0kg

  * PIM < -140dBc@ 2X43dBm or PIM < -150dBc@ 2X33dBm
