  PRODUCT >> INDOOR & OUTDOOR ANTENNAE

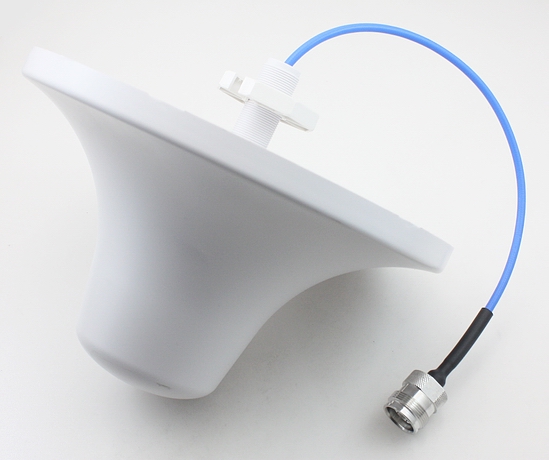

Indoor Ceiling Antenna

 Item Name:  Omni Ceiling Antenna  Beamwidth H:  360°
 Model:  CE-727-5DBN/AJ  Beamwidth V:  75°
 Class:  Omni Ceiling  Polarization:  Vertical
 Frequency:  698-960,1710-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  186X85mm
 Gain:  2/5 dB  Weight:  0.50kg
 VSWR:  < 1.5 (PIM< -150dBc)  Remark:  Aluminum Plate
 Item Name:  Omni Ceiling Antenna  Beamwidth H:  360°
 Model:  CE-740-5DBN/AJ  Beamwidth V:  75°
 Class:  Omni Ceiling  Polarization:  Vertical
 Frequency:  698-4000MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  186X85mm
 Gain:  2/5 dB  Weight:  0.50kg
 VSWR:  < 1.5 (PIM< -150dBc)  Remark:  Aluminum Plate
 Item Name:  Omni Ceiling Antenna  Beamwidth H:  360°
 Model:  CE-760-5DBN/AJ  Beamwidth V:  75°
 Class:  Omni Ceiling  Polarization:  Vertical
 Frequency:  694-6000MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  186X85mm
 Gain:  2/5 dB  Weight:  0.50kg
 VSWR:  < 1.5 (PIM< -150dBc)  Remark:  Aluminum Plate
 Item Name:  Omni Ceiling Antenna  Beamwidth H:  360°
 Model:  CE-360-4DBN/AJ  Beamwidth V:  75°
 Class:  Omni Ceiling  Polarization:  Vertical
 Frequency:  380-6000MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  186X85mm
 Gain:  2/4 dB  Weight:  0.50kg
 VSWR:  < 1.5 (PIM< -150dBc)  Remark:  Aluminum Plate
 Item Name:  Omni Ceiling Antenna  Beamwidth H:  360°
 Model:  CE-727-5DBNH  Beamwidth V:  75°
 Class:  Omni Ceiling  Polarization:  Vertical
 Frequency:  698-960,1710-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  186X85mm
 Gain:  2/5 dB  Weight:  0.50kg
 VSWR:  < 1.5 (PIM< -140dBc) *  Remark:  Aluminum Plate
 Item Name:  Omni Ceiling Antenna  Beamwidth H:  360°
 Model:  CE-727-5DBNE  Beamwidth V:  75°
 Class:  Omni Ceiling  Polarization:  Vertical
 Frequency:  698-960,1710-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  186X85mm
 Gain:  2/5 dB  Weight:  0.50kg
 VSWR:  < 1.5  Remark:  Aluminum Plate
 Item Name:  Omni Ceiling Antenna  Beamwidth H:  360°
 Model:  CE-727-5DBN/Y  Beamwidth V:  75°
 Class:  Omni Ceiling  Polarization:  Vertical
 Frequency:  698-960,1710-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  184X80mm
 Gain:  2/5 dB  Weight:  0.45kg
 VSWR:  < 1.5 (PIM< -140dBc) *  Remark:  Aluminum Plate
 Item Name:  Omni Ceiling Antenna  Beamwidth H:  360°
 Model:  CE-727-6DBN/FAJ  Beamwidth V:  75°
 Class:  Omni Ceiling  Polarization:  Vertical
 Frequency:  698-960,1710-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  218X40mm
 Gain:  6 dB  Weight:  0.50kg
 VSWR:  < 1.5 (PIM< -150dBc)  Remark:  ABS Plate
 Item Name:  Omni Ceiling Antenna  Beamwidth H:  360°
 Model:  CE-327-4DBN/FAJ  Beamwidth V:  75°
 Class:  Omni Ceiling  Polarization:  Vertical
 Frequency:  380-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  218X40mm
 Gain:  4.5 dB  Weight:  0.50kg
 VSWR:  < 1.5 (PIM< -150dBc)  Remark:  ABS Plate
 Item Name:  Omni Ceiling Antenna  Beamwidth H:  360°
 Model:  CE-740-4DBN/FAJ  Beamwidth V:  75°
 Class:  Omni Ceiling  Polarization:  Vertical
 Frequency:  698-4000MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  218X40mm
 Gain:  4.5 dB  Weight:  0.50kg
 VSWR:  < 1.5 (PIM< -150dBc)  Remark:  ABS Plate
 Item Name:  Omni Ceiling Antenna  Beamwidth H:  360°
 Model:  CE-730-5DBN/FRJ  Beamwidth V:  116°/75°/65°
 Class:  Omni Ceiling  Polarization:  Vertical
 Frequency:  698-3000MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  190X80mm
 Gain:  5 dB  Weight:  0.25kg
 VSWR:  < 1.8 (PIM< -140dBc)  Remark:  ABS Plate
 Item Name:  Omni Ceiling Antenna  Beamwidth H:  360°
 Model:  CE-640-5DBN/FRJ  Beamwidth V:  116°/75°/65°
 Class:  Omni Ceiling  Polarization:  Vertical
 Frequency:  617-4000MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  190X80mm
 Gain:  5 dB  Weight:  0.25kg
 VSWR:  < 1.8 (PIM< -140dBc)  Remark:  ABS Plate
 Item Name:  Omni Ceiling Antenna  Beamwidth H:  360°
 Model:  CE-827-5DBN  Beamwidth V:  75°
 Class:  Omni Ceiling  Polarization:  Vertical
 Frequency:  806-960,1700-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  186X85mm
 Gain:  2/5 dB  Weight:  0.50kg
 VSWR:  < 1.5  Remark:  Aluminum Plate
 Item Name:  Omni Ceiling Antenna  Beamwidth H:  360°
 Model:  CE-827-5DBNH  Beamwidth V:  75°
 Class:  Omni Ceiling  Polarization:  Vertical
 Frequency:  806-960,1700-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  186X85mm
 Gain:  2/5 dB  Weight:  0.50kg
 VSWR:  < 1.5 (PIM< -140dBc) *  Remark:  Aluminum Plate
 Item Name:  Omni Ceiling Antenna  Beamwidth H:  360°
 Model:  CE-825-3DBN  Beamwidth V:  75°
 Class:  Omni Ceiling  Polarization:  Vertical
 Frequency:  806-960,1700-2500MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  168X95mm
 Gain:  2/3dB  Weight:  0.45kg
 VSWR:  < 1.5  Remark:  Aluminum Plate
 Item Name:  Omni Ceiling Antenna  Beamwidth H:  360°
 Model:  CE-825-3DBNT  Beamwidth V:  75°
 Class:  Omni Ceiling (Translucent)  Polarization:  Vertical
 Frequency:  806-960,1710-2500MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  187X80mm
 Gain:  2/3dB  Weight:  0.45kg
 VSWR:  < 1.5  Remark:  Aluminum Plate
 Item Name:  Omni Ceiling Antenna  Beamwidth H:  360°
 Model:  CE-825-5DBN  Beamwidth V:  75°
 Class:  Omni Ceiling  Polarization:  Vertical
 Frequency:  806-960,1700-2500MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  186X85mm
 Gain:  2/5 dB  Weight:  0.50kg
 VSWR:  < 1.5  Remark:  Aluminum Plate
 Item Name:  Omni Ceiling Antenna  Beamwidth H:  360°
 Model:  CE-825-5DBNH  Beamwidth V:  75°
 Class:  Omni Ceiling  Polarization:  Vertical
 Frequency:  806-960,1700-2500MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  186X85mm
 Gain:  2/5 dB  Weight:  0.50kg
 VSWR:  < 1.5 (PIM< -140dBc) *  Remark:  Aluminum Plate
 Item Name:  Smoke Alarm Antenna  Beamwidth H:  360°
 Model:  CES-825-5DBNH  Beamwidth V:  75°
 Class:  Omni Ceiling  Polarization:  Vertical
 Frequency:  806-960,1700-2500MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  186X85mm
 Gain:  2/5 dB  Weight:  0.50kg
 VSWR:  < 1.5  Remark:  Aluminum Plate
 Item Name:  Smoke Alarm Antenna  Beamwidth H:  360°
 Model:  CES-727-5DBNH  Beamwidth V:  75°
 Class:  Omni Ceiling  Polarization:  Vertical
 Frequency:  698-960,1700-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  186X85mm
 Gain:  2/5 dB  Weight:  0.50kg
 VSWR:  < 1.5  Remark:  Aluminum Plate
 Item Name:  MIMO Ceiling Antenna  Beamwidth H:  360°
 Model:  MOCE-727-5DB43/AHFT  Roundness:  ±1.5/±2.0dB
 Frequency:  698-960,1710-2700MHz  Polarization:  V+H
 Isolation:  >20  Impedance:  50Ω,4.3-10/F
 Power:  50W  Size:  204X119mm
 Gain:  2±1.0dB / 3.5±1.5dB  Weight:  0.55kg
 VSWR:  < 1.5(2) (PIM< -150dBc)  Remark:  Aluminum Plate
 Item Name:  MIMO Ceiling Antenna  Beamwidth H:  360°
 Model:  MOCE-727-3DBN/SFT  Roundness:  ±1.5/±2.0dB
 Frequency:  698-960,1710-2700MHz  Polarization:  V+H
 Isolation:  >25  Impedance:  50 Ω , N/F
 Power:  50W  Size:  204X119mm
 Gain:  2±1.0dB / 3.5±1.5dB  Weight:  0.55kg
 VSWR:  < 1.5(2) (PIM< -140dBc) *  Remark:  Aluminum Plate
 Item Name:  MIMO Ceiling Antenna  Beamwidth H:  85/50°
 Model:  MOCE-727-5DBN/AJFT  Roundness:  ±1.5/±2.0dB
 Frequency:  698-960,1710-2700MHz  Polarization:  Vertical
 Isolation:  >25  Impedance:  50 Ω , N/F
 Power:  50W  Size:  204X119mm
 Gain:  3±1.0dB / 5±1.5dB  Weight:  0.55kg
 VSWR:  < 1.5(2) (PIM< -150dBc)  Remark:  Aluminum Plate
 Item Name:  MIMO Ceiling Antenna  Beamwidth H:  85/50°
 Model:  MOCE-740-5DBN/AJFT  Roundness:  ±1.5/±2.0dB
 Frequency:  698-960,1710-4000MHz  Polarization:  Vertical
 Isolation:  >25  Impedance:  50 Ω , N/F
 Power:  50W  Size:  204X119mm
 Gain:  3±1.0dB / 5±1.5dB  Weight:  0.55kg
 VSWR:  < 1.5(2) (PIM< -150dBc)  Remark:  Aluminum Plate
 Item Name:  MIMO Ceiling Antenna  Beamwidth H:  85/50°
 Model:  MOCE-740-6DBN/AJFT  Roundness:  ±1.5/±2.0dB
 Frequency:  698-4000MHz  Polarization:  Linear Horizontal
 Isolation:  >16/25  Impedance:  50 Ω , N/F
 Power:  50W  Size:  204X119mm
 Gain:  1.5±1.0dB / 6.0±1.0dB  Weight:  0.55kg
 VSWR:  < 1.8(2) (PIM< -150dBc)  Remark:  Aluminum Plate
 Item Name:  MIMO Ceiling Antenna  Beamwidth H:  85/50°
 Model:  MOCE-827-3DBNH  Roundness:  ±1.5/±2.0dB
 Frequency:  800-960,1710-2700MHz  Polarization:  V+H
 Isolation:  >25 (28) / 1710-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  204X119mm
 Gain:  2±1.0dB / 3.5±1.5dB  Weight:  0.55kg
 VSWR:  < 1.5(2) (PIM< -140dBc) *  Remark:  Aluminum Plate
 Item Name:  MIMO Ceiling Antenna  Beamwidth H:  85/50°
 Model:  MOCE-727-3DBNH  Roundness:  ±1.5/±2.0dB
 Frequency:  698-960,1710-2700MHz  Polarization:  V+H
 Isolation:  >25 (28) / 1710-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  204X119mm
 Gain:  2±1.0dB / 3.5±1.5dB  Weight:  0.55kg
 VSWR:  < 1.5(2) (PIM< -140dBc) *  Remark:  Aluminum Plate
 Item Name:  4X4 MIMO Ceiling Antenna  Beamwidth H:  360°
 Model:  MOCE4X4-740-5DBN/AJ  Roundness:  ±1.5/±2.0dB
 Frequency:  698-4000MHz  Polarization:  Linear×4
 Isolation:  >13/20  Impedance:  50 Ω , N/F
 Power:  50W  Size:  204X119mm
 Gain:  3±0.5dB / 4.5±1.0dB  Weight:  0.90kg
 VSWR:  < 1.8 (PIM< -153dBc)  Remark:  Aluminum Plate

Indoor Directional Ceiling Antenna

 Item Name:  Directional Ceiling Antenna  Beamwidth H:  12
 Model:  DCE-727-7DBN/H  Beamwidth V:  70°
 Class:  Directional Ceiling  Polarization:  Vertical
 Frequency:  698-960,1700-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  186X80mm
 Gain:  5/7dB  Weight:  0.70kg
 VSWR:  < 1.5(2) (PIM< -140dBc) *  Remark:  Aluminum Plate
 Item Name:  Directional Ceiling Antenna  Beamwidth H:  12
 Model:  DCE-727-7DBN  Beamwidth V:  70°
 Class:  Directional Ceiling  Polarization:  Vertical
 Frequency:  698-960,1700-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  186X80mm
 Gain:  5/7dB  Weight:  0.70kg
 VSWR:  < 1.5  Remark:  Aluminum Plate
 Item Name:  Directional Ceiling Antenna  Beamwidth H:  12
 Model:  DCE-827-7DBN  Beamwidth V:  70°
 Class:  Directional Ceiling  Polarization:  Vertical
 Frequency:  806-960,1700-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  186X80mm
 Gain:  5/7dB  Weight:  0.70kg
 VSWR:  < 1.5  Remark:  Aluminum Plate
 Item Name:  Directional Ceiling Antenna  Beamwidth H:  12
 Model:  DCE-825-7DBN  Beamwidth V:  70°
 Class:  Directional Ceiling  Polarization:  Vertical
 Frequency:  806-960,1700-2500MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  186X80mm
 Gain:  5/7dB  Weight:  0.70kg
 VSWR:  < 1.5  Remark:  Aluminum Plate

Indoor Panel Antenna

 Item Name:  Directional Panel Antenna  Beamwidth H:  55~80° ±1
 Model:  PA-740-8DBNH/AR  Beamwidth V:  30~70° ±1
 Class:  Directional Panel  Polarization:  Vertical
 Frequency:  698-4000MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  200X180X62mm
 Gain:  5.5dB/8.5dB  Weight:  0.75kg
 VSWR:  < 1.5  (PIM< -153dBc)  Remark:  Aluminum Plate
 Item Name:  Directional Panel Antenna  Beamwidth H:  75~115° ±1
 Model:  PA-727-8DBNH/AJ  Beamwidth V:  58° ±1
 Class:  Directional Panel  Polarization:  Vertical
 Frequency:  698-960,1710-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  210X180X45mm
 Gain:  8 dB  Weight:  0.75kg
 VSWR:  < 1.5  (PIM< -150dBc)  Remark:  Aluminum Plate
 Item Name:  Directional Panel Antenna  Beamwidth H:  75~115° ±1
 Model:  PA-740-8DBNH/AJ  Beamwidth V:  58° ±1
 Class:  Directional Panel  Polarization:  Vertical
 Frequency:  698-4000MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  210X180X45mm
 Gain:  8 dB  Weight:  0.75kg
 VSWR:  < 1.5  (PIM< -150dBc)  Remark:  Aluminum Plate

 Item Name:  Directional Panel Antenna  Beamwidth H:  75~115° ±1
 Model:  PA-727-8DBNH  Beamwidth V:  58° ±1
 Class:  Directional Panel  Polarization:  Vertical
 Frequency:  698-960,1710-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  210X180X45mm
 Gain:  8 dB  Weight:  0.75kg
 VSWR:  < 1.5  (PIM< -140dBc) *  Remark:  Aluminum Plate
 Item Name:  Directional Panel Antenna  Beamwidth H:  75~115° ±1
 Model:  PA-727-8DBN(E)  Beamwidth V:  58° ±1
 Class:  Directional Panel  Polarization:  Vertical
 Frequency:  698-960,1710-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  210X180X45mm
 Gain:  8 dB  Weight:  0.75kg
 VSWR:  < 1.5  Remark:  Aluminum Plate
 Item Name:  Directional Panel Antenna  Beamwidth H:  68° ±1
 Model:  PA-827-8DBNH  Beamwidth V:  58° ±1
 Class:  Directional Panel  Polarization:  Vertical
 Frequency:  806-960,1710-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  210X180X45mm
 Gain:  8 dB  Weight:  0.75kg
 VSWR:  < 1.5  (PIM< -140dBc) *  Remark:  Aluminum Plate
 Item Name:  Directional Panel Antenna  Beamwidth H:  68° ±1
 Model:  PA-827-8DBN  Beamwidth V:  58° ±1
 Class:  Directional Panel  Polarization:  Vertical
 Frequency:  806-960,1710-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  210X180X45mm
 Gain:  8 dB  Weight:  0.75kg
 VSWR:  < 1.5  Remark:  Aluminum Plate
 Item Name:  Directional Panel Antenna  Beamwidth H:  68° ±1
 Model:  PA-825-8DBNH  Beamwidth V:  58° ±1
 Class:  Directional Panel  Polarization:  Vertical
 Frequency:  806-960,1710-2500MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  210X180X45mm
 Gain:  8 dB  Weight:  0.75kg
 VSWR:  < 1.5  (PIM< -140dBc) *  Remark:  Aluminum Plate
 Item Name:  Directional Panel Antenna  Beamwidth H:  68° ±1
 Model:  PA-825-8DBN  Beamwidth V:  58° ±1
 Class:  Directional Panel  Polarization:  Vertical
 Frequency:  806-960,1710-2500MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  210X180X45mm
 Gain:  8 dB  Weight:  0.75kg
 VSWR:  < 1.5  Remark:  Aluminum Plate
 Item Name:  MIMO Panel Antenna  Beamwidth H:  70±15°
 Model:  MOPA-727-8DBN/AJ  Beamwidth V:  70°
 Class:  Directional Panel  Polarization:  Vertical/±45°
 Frequency:  698-960,1710-2700MHz  Impedance:  50Ω , N/F
 Power:  50W  Size:  280X175X62mm
 Gain:  6±1.0dB / 8±1.0dB  Weight:  0.75kg
 VSWR:  < 1.5  (PIM< -150dBc)  Remark:  Aluminum Plate
 Item Name:  MIMO Panel Antenna  Beamwidth H:  70±15°
 Model:  MOPA-740-8DBN/AH  Beamwidth V:  70°
 Class:  Directional Panel  Polarization:  Vertical/±45°
 Frequency:  698-960,1710-4000MHz  Impedance:  50ΩN/F
 Power:  50W  Size:  280X175X62mm
 Gain:  6±1.0dB / 8±1.0dB  Weight:  0.75kg
 VSWR:  < 1.5  (PIM< -150dBc)  Remark:  Aluminum Plate
 Item Name:  MIMO Panel Antenna  Beamwidth H:  90±15/65±15°
 Model:  MOPA-827-8DBNH  Beamwidth V:  65/60°
 Class:  Directional Panel  Polarization:  Vertical/±45°
 Frequency:  800-960,1710-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  280X175X62mm
 Gain:  6±1.0dB / 8±1.0dB  Weight:  0.75kg
 VSWR:  < 1.5  (PIM< -140dBc) *  Remark:  Aluminum Plate
 Item Name:  MIMO Panel Antenna  Beamwidth H:  90±15/65±15°
 Model:  MOPA-727-8DBNH  Beamwidth V:  65/60°
 Class:  Directional Panel  Polarization:  Vertical/±45°
 Frequency:  698-960,1710-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  280X175X62mm
 Gain:  6±1.0dB / 8±1.0dB  Weight:  0.75kg
 VSWR:  < 1.5  (PIM< -140dBc) *  Remark:  Aluminum Plate
 Item Name:  4X4 MIMO Panel Antenna  Beamwidth H:  68/75±5°
 Model:  MOPA4X4-740-8DBN/AJ  Beamwidth V:  60/70°
 Class:  Directional Panel  Polarization:  2X45°
 Frequency:  698-4000MHz  Impedance:  50ΩN/F
 Power:  50W  Size:  308X420X82mm
 Gain:  6±1.0dB / 7.5±1.0dB  Weight:  2.80kg
 VSWR:  < 1.5  (PIM< -153dBc)  Remark:  Aluminum Plate

Outdoor Panel Antenna

 Item Name:  Directional Panel Antenna  Beamwidth H:  30/45° ±6°
 Model:  PA-727-12DBN/OD  Beamwidth V:  45/60° ±6°
 Class:  Directional Panel  Polarization:  Vertical
 Frequency:  698-960,1710-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  256X170X56mm
 Gain:  11/12 dB  Weight:  0.50kg
 VSWR:  < 1.6  Remark:  Aluminum Plate

 Item Name:  Directional Panel Antenna  Beamwidth H:  68° ±1
 Model:  PA-825-8DBN/OD  Beamwidth V:  58° ±1
 Class:  Directional Panel  Polarization:  Vertical
 Frequency:  806-960,1710-2500MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  210X180X45mm
 Gain:  8 dB  Weight:  0.75kg
 VSWR:  < 1.5  Remark:  Aluminum Plate
 Item Name:  Directional Panel Antenna  Beamwidth H:  68° ±1
 Model:  PA-825-8DBNH/OD  Beamwidth V:  58° ±1
 Class:  Directional Panel  Polarization:  Vertical
 Frequency:  806-960,1710-2500MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  210X180X45mm
 Gain:  8 dB  Weight:  0.75kg
 VSWR:  < 1.5  (PIM< -140dBc) *  Remark:  Aluminum Plate
 Item Name:  Directional Panel Antenna  Beamwidth H:  75~115° ±1
 Model:  PA-727-8DBNE/OD  Beamwidth V:  58° ±1
 Class:  Directional Panel  Polarization:  Vertical
 Frequency:  698-960,1710-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  210X180X45mm
 Gain:  8 dB  Weight:  0.75kg
 VSWR:  < 1.5  Remark:  Aluminum Plate
 Item Name:  Directional Panel Antenna  Beamwidth H:  75~115° ±1
 Model:  PA-727-8DBNH/OD  Beamwidth V:  58° ±1
 Class:  Directional Panel  Polarization:  Vertical
 Frequency:  698-960,1710-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  210X180X45mm
 Gain:  8 dB  Weight:  0.75kg
 VSWR:  < 1.5  (PIM< -140dBc) *  Remark:  Aluminum Plate

GPS Timing Reference Antenna

 Item Name:  GPS Timing Antenna  3dB Beamwidth  110 ±10
 Model:  GPS-1575-28DBN  Front to Back:  10dB MIN
 Class:  Timing Antenna  Axial Ratio:  5dB MAX
 Frequency:  1575.42 ±5MHz  Voltage:  DC3.5~9V
 Noise Figure:  2.7 dB MAX  Current:  25mA MAX
 Gain:  28 dB  Impedance:  50 Ω , N/F
 VSWR:  ≤ 2.5  Weight:  1.0kg
 Item Name:  GPS Timing Antenna  3dB Beamwidth  110 ±10
 Model:  GPS-1575-38DBN  Front to Back:  10dB MIN
 Class:  Timing Antenna  Axial Ratio:  5dB MAX
 Frequency:  1575.42 ±5MHz  Voltage:  DC3.5~9V
 Noise Figure:  2.7 dB MAX  Current:  25mA MAX
 Gain:  38 dB  Impedance:  50 Ω , N/F
 VSWR:  ≤ 2.5  Weight:  1.0kg
 Item Name:  GPS Timing Antenna  Polarization:  RHCP
 Model:  GPS-11-17-40DBN  Horizontal:  360
 Class:  Timing Antenna  Axial Ratio:  3dB MAX
 Frequency:  1164~16623MHz  Voltage:  DC3.3~16V
 Noise Figure:  2.0 dB MAX  Current:  45mA MAX
 Gain:  40 dB (LNA)  Impedance:  50 Ω , TNC/F
 VSWR:  ≤ 2.0  Weight:  1.0kg

  * PIM < -140dBc@ 2X43dBm or PIM < -150dBc@ 2X33dBm

INDOOR & OUTDOOR BESTROW ANTENNAE
