PRODUCT >> 2.2/5 & 2.92MM Termination Load (Dummy Load)

2.2-5 Termination Load
 Item Name:  Termination Load  V.S.W.R:  ≤ 1.15/≤ 1.20
 Model:  TE-1W-6G2.2/5M  Temperature:  -35℃- +85℃
 Frequency:  DC-6G  Inner Plating:  Silver Plate
 Impedance:  50 Ω  Body Plating  Black *
 Connector:  2.2/5-Male  Radiator:  Aluminium,RoHS,IP65
 Power:  1W (Average)  Annotation:  Indoor/Outdoor Use
 Item Name:  Termination Load  V.S.W.R:  ≤ 1.15/≤ 1.20
 Model:  TE-2W-6G2.2/5M  Temperature:  -35℃- +85℃
 Frequency:  DC-6G  Inner Plating:  Silver Plate
 Impedance:  50 Ω  Body Plating  Black *
 Connector:  2.2/5-Male  Radiator:  Aluminium,RoHS,IP65
 Power:  2W (Average)  Annotation:  Indoor/Outdoor Use
 Item Name:  Termination Load  V.S.W.R:  ≤ 1.15/≤ 1.20
 Model:  TE-5W-6G2.2/5M  Temperature:  -35℃- +85℃
 Frequency:  DC-6G  Inner Plating:  Silver Plate
 Impedance:  50 Ω  Body Plating  Black *
 Connector:  2.2/5-Male  Radiator:  Aluminium,RoHS,IP65
 Power:  5W (Average)  Annotation:  Indoor/Outdoor Use

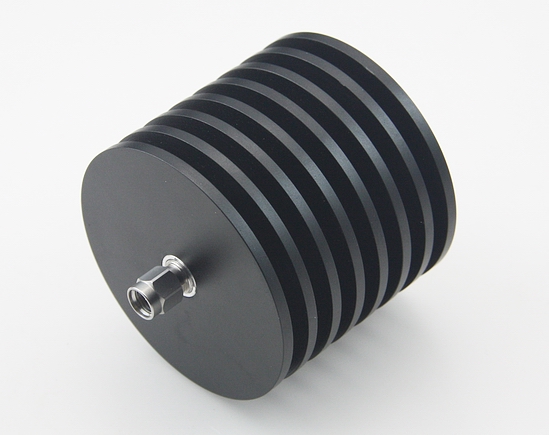

2.92mm Series Termination Load
 Item Name:  Termination Load  V.S.W.R:  ≤ 1.50
 Model:  TE-50W-40G2.92mm/M  Temperature:  -55℃- +125℃
 Frequency:  DC-40G  Inner Plating:  Silver Plate
 Impedance:  50 Ω  Body Plating  Black *
 Connector:  2.92mm-Male  Radiator:  Aluminium,RoHS
 Power:  50W  Annotation:  Indoor Use

 * When take-down the load,circumgyrate the connector only,do not circumgyrate the radiator body.
