  PRODUCT >> FEEDER CLAMP & HANGER


Grounding Kits Clamp & Hangers Grounding Bar Cable Entry Hoisting Grip
Cable Tools  Weatherproofing Kit Antenna Bracket Cable Ladder Moving Room

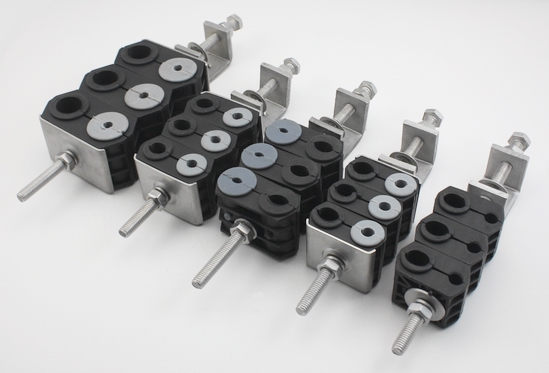

 Item Name:  Feeder Cable Hanger (Feeder Clamp)
 Clamp Class:  Click-On Hanger (Through Type)
 Clamp Model:  TR-X*XX-304SS (TR-2X1/2"-304SS)
 Plastic Material:  Polypropylene (PP)
 Metal Material:  304 Stainless Steel
 Clamp Stack:  Single,Double,Triple,Fourfold Stack
 Match Cable:  3/8",1/2",7/8",1-1/4",1-5/8" Feeder *
 Match Cable:  RG8,RG213,LMR400 Coaxial Cable
 Item Name:  Feeder Cable Hanger (Feeder Clamp)
 Clamp Class:  Click-On Hanger (Through Type)
 Clamp Model:  TRF-X*XX-304SS (TR-2X7/8"-304SS)
 Plastic Material:  Polypropylene(PP) + Fiberglass
 Metal Material:  304 Stainless Steel
 Clamp Stack:  Single,Double,Triple,Fourfold Stack
 Match Cable:  3/8",1/2",7/8",1-1/4",1-5/8" Feeder *
 Match Cable:  RG8,RG213,LMR400 Coaxial Cable
 Item Name:  Optical Fiber Hanger (Feeder Clamp)
 Clamp Class:  Click-On type Hanger
 Clamp Model:  TRO-X*XX-304SS
 Plastic Material:  Polypropylene (PP) / ABS
 Metal Material:  304 Stainless Steel
 Clamp Stack:  Single,Double,Triple,Fourfold Stack
 Match Cable:  5.5-14.0mm Optical Fiber
 Item Name:  Feeder Cable Hanger (Feeder Clamp)

 Clamp Class:  Two Hole Type (S-Steel Splint Include)
 Clamp Model:  TWS-X*XX-304SS (TWS-6X7/8"-304SS)
 Plastic Material:  ABS (Styreneckpolymer) / PP
 Metal Material:  304 Stainless Steel
 Clamp Stack:  Single,Double,Triple Stack
 Match Cable:  7/8" Feeder Cable
 Item Name:  Feeder Cable Hanger (Feeder Clamp)

 Clamp Class:  Two Hole Type (Without S-Steel Splint)
 Clamp Model:  TWZ-X*XX-304SS (TWZ-6X1/2"-304SS)
 Plastic Material:  Polypropylene (PP)
 Metal Material:  304 Stainless Steel
 Clamp Stack:  Single,Double,Triple Stack
 Match Cable:  1/2",1/2"SF,7/8" Feeder Cable
 Item Name:  Optical Fiber & Power Cable Hanger

 Clamp Class:  Two Hole Type (S-Steel Splint Include)
 Clamp Model:  TWOS-X*XX-XX-304SS
 Plastic Material:  Polypropylene (PP)
 Metal Material:  304 Stainless Steel
 Clamp Stack:  Single,Double,Triple Stack
 Match Cable:  5~8mm Fiber & 9~13mm Cable
 Item Name:  Optical Fiber & Power Cable Hanger
 Clamp Class:  Two Hole Type (Without S-Steel Splint)
 Clamp Model:  TWOB-X*XX-XX-304SS
 Plastic Material:  Polypropylene (PP)
 Metal Material:  304 Stainless Steel
 Clamp Stack:  Single,Double,Triple Stack
 Match Cable:  5~8mm Fiber & 8~18.5mm Cable
 Item Name:  Feeder Cable Hanger (Feeder Clamp)
 Clamp Class:  Two Hole Type
 Clamp Model:  TWMS-X*XX-304SS
 Plastic Material:  Polypropylene(PP) + Fiberglass
 Metal Material:  304 Stainless Steel **
 Clamp Stack:  Single,Double,Triple Stack ***
 Match Cable:  1/2",1/2"SF,7/8",1-1/4",1-5/8" Feeder
 Item Name:  Feeder Cable Hanger (Feeder Clamp)
 Clamp Class:  Two Hole Type
 Clamp Model:  TWME-X*XX-304SS
 Plastic Material:  Polypropylene(PP) + Fiberglass
 Metal Material:  304 Stainless Steel **
 Clamp Stack:  Single,Double,Triple Stack ***
 Match Cable:  1/2",7/8",1-1/4",1-5/8" Feeder
 Item Name:  Feeder Cable Hanger (Feeder Clamp)
 Clamp Class:  Two Hole Type
 Clamp Model:  TWME-X*XX-304SS
 Plastic Material:  Polypropylene(PP) + Fiberglass
 Metal Material:  304 Stainless Steel **
 Clamp Stack:  Single,Double,Triple Stack
 Match Cable:  1/4"SF,3/8",1/2"SF Feeder
 Item Name:  Feeder Cable Hanger (Feeder Clamp)

 Clamp Class:  Suspend Hamulus Type
 Clamp Model:  SHZ-X*XX-304SS (SHZ-3X7/8"-304SS)
 Plastic Material:  Polypropylene (PP)
 Metal Material:  304 Stainless Steel
 Clamp Stack:  Single,Double,Triple Stack
 Match Cable:  7/8" Feeder Cable
 Item Name:  Leaky Cable Hanger (Feeder Clamp)
 Clamp Class:  Self-Locking Hanger
 Clamp Model:  LKR-XX-PPA (LKR-1/2"-PPA)
 Plastic Material:  Polypropylene (PP)
 Metal Material:  Iron or 304 Stainless Steel
 Mounting Hole:  Screw or M8 Expand Tube
 Match Cable:  1/2",7/8",1-1/4",1-5/8" Leaky Cable
 Item Name:  Leaky Cable Hanger (Feeder Clamp)
 Clamp Class:  Butterfly Hanger
 Clamp Model:  LKR-XX-BM (LKR-1-5/8"-BM)
 Plastic Material:  Non
 Metal Material:  304 Stainless Steel
 Mounting Hole:  M6 Expand Tube
 Match Cable:  1/2",7/8",1-1/4",1-5/8" Leaky Cable
 Item Name:  Leaky Cable Hanger (Feeder Clamp)
 Clamp Class:  Self-Locking Hanger
 Clamp Model:  LKR-XX-PPI (LKR-1-1/4"-PPI)
 Plastic Material:  Polypropylene (PP)
 Metal Material:  Iron or 304 Stainless Steel
 Mounting Hole:  M8 Expand Tube
 Match Cable:  1/2",7/8",1-1/4",1-5/8" Leaky Cable
 Item Name:  Leaky Cable Hanger (Feeder Clamp)
 Clamp Class:  Self-Locking Hanger
 Clamp Model:  LKR-XX-PPU (LKR-1-1/4"-PPU)
 Plastic Material:  Polypropylene (PP)
 Metal Material:  Iron or 304 Stainless Steel
 Mounting Hole:  M8 Expand Tube
 Match Cable:  7/8",1-1/4",1-5/8" Leaky Cable
 Item Name:  Feeder Cable Hanger (Feeder Clamp)

 Clamp Class:  Hoop Type
 Clamp Model:  HP-XX-304SS (HP-7/8"-304SS)
 Clamp Material:  Black Rubber
 Metal Material:  304 Stainless Steel
 Clamp Stack:  Single Stack
 Match Cable:  1/2",7/8",1-1/4",1-5/8",3-1/8" Feeder
 Item Name:  Elliptical Wave-Guide Clamp
 Clamp Class:  Hoop Type (For Wave-Guide)
 Clamp Model:  HPW-XX-304SS (HPW-BT62-304SS)
 Clamp Material:  Black Rubber
 Metal Material:  304 Stainless Steel
 Clamp Stack:  Single,Double,Triple,Fourfold Stack
 Match Cable:  BT-26,54,90 BTX-62,80 Wave-Guide
 Item Name:  Through Clamp Hanger Kit
 Clamp Class:  Click-On Hanger (Through Type)
 Clamp Model:  TCH-XX-304SS (TCH-4X7/8"-304SS)
 Metal Material:  304 Stainless Steel
 Clamp Stack:  1,2,3,4,5,6,7,8... Stack
 Match Cable:  3/8",1/2",7/8",1-1/4",1-5/8" Feeder
 Item Name:  Angle Adapter,Standard, 3/8 in tapped
 Model:  AD-TH-304SS (31468A)
 Material Thickness:  3.20mm
 Mounting:  3/8 in tapped hole/M10 tapped hole
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  Angle Adapter,Standard, 3/8 in tapped
 Model:  AD-TH-HDG (31468A)
 Material Thickness:  3.20mm
 Mounting:  3/8 in tapped hole/M10 tapped hole
 Metal Material:  Steel with Hot Galvanizing
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  Universal Angle Adapter (Snap-in)
 Model:  AD-UOS-304SS (UAA)
 Material Thickness:  2.67mm
 Mounting:  3/4 in through hole
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  Universal Angle Adapter (Snap-in)
 Model:  AD-UOS-HDG (UAA)
 Material Thickness:  2.67mm
 Mounting:  3/4 in through hole
 Metal Material:  Steel with Hot Galvanizing
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  Universal Angle Adapter (Snap-in)
 Model:  AD-US-304SS
 Material Thickness:  2.67mm
 Maximum Loading:  Triple stack, 1-5/8 in cable
 Mounting:  3/4 in through hole
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  Compact Angle Adapter
 Model:  AD-HC-304SS (243684)
 Material Thickness:  2.97mm
 Maximum Loading:  Double stack, 1-5/8 in cable
 Mounting:  3/8 in tapped hole (M10)
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  U Angle Adapter
 Model:  AD-UC-304SS
 Material Thickness:  3.9mm
 Maximum Loading:  Triple stack, 1-5/8 in cable
 Mounting:  M6/M8 in tapped hole
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  Mini U Angle Adapter
 Model:  AD-MNUC-304SS
 Material Thickness:  2.97mm
 Maximum Loading:  Triple stack, 1-5/8 in cable
 Mounting:  M6/M8 in tapped hole
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  Medium U Angle Adapter
 Model:  AD-MDUC-304SS
 Material Thickness:  2.97mm
 Maximum Loading:  Triple stack, 1-5/8 in cable
 Mounting:  M6/M8 in tapped hole
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  Stand-off Adapter, 3/8 in tapped hole
 Clamp Class:  3/8" Tapped Adapter
 Clamp Model:  AD-TP-304SS
 Metal Material:  304 Stainless Steel
 Mounting:  3/8 in tapped hole
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  3/4" Tapped Stand-Off Adapter
 Clamp Class:  3/4" Tapped Adapter
 Clamp Model:  AD-SN-304SS
 Metal Material:  304 Stainless Steel
 Mounting:  3/8 in tapped hole
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  Universal Stand-off Adapter
 Clamp Class:  Three-way Snap-in Stand-off Adapter
 Clamp Model:  AD-USXX-304SS (STS3)
 Metal Material:  304 Stainless Steel
 Hoop Diameter:  1"-10" Diameter
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  Round Hoop Member Adaptor
 Clamp Class:  Round Hoop Type
 Clamp Model:  AD-RH-304SS
 Metal Material:  304,202,201 Stainless steel
 Hoop Diameter:  1"-15" Diameter
 Item Name:  3/8" & 1/2" Butterfly Hanger
 Model:  HGBT-XX-304SS (43211A)
 Match Cable:  1/2",1/2"SF,LMR600 Feeder Cable
 Cables Per Hanger:  1 pcs
 Mounting:  3/8 in (M10) drilled cable ladder
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  5/8" Butterfly Hanger
 Model:  HGBT-5/8"-304SS ( 42396A-9)
 Match Cable:  5/8" Feeder Cable
 Cables Per Hanger:  1 pcs
 Mounting:  3/8 in (M10) drilled cable ladder
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  7/8" Butterfly Hanger
 Model:  HGBT-7/8"-304SS (42396A-5)
 Match Cable:  7/8" Feeder Cable
 Cables Per Hanger:  1 pcs
 Mounting:  3/8 in (M10) drilled cable ladder
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  1-1/4" Butterfly Hanger
 Model:  HGBT-1-1/4"-304SS (42396A-1)
 Match Cable:  1-1/4" Feeder Cable
 Cables Per Hanger:  1 pcs
 Mounting:  3/8 in (M10) drilled cable ladder
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  1-5/8" Butterfly Hanger
 Model:  HGBT-1-5/8"-304SS (42396A-2)
 Match Cable:  1-5/8" Feeder Cable
 Cables Per Hanger:  1 pcs
 Mounting:  3/8 in (M10) drilled cable ladder
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  2-1/4" Butterfly Hanger
 Model:  HGBT-2-1/4"-304SS (42396A-4)
 Match Cable:  2-1/4" Feeder Cable
 Cables Per Hanger:  1 pcs
 Mounting:  3/8 in (M10) drilled cable ladder
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  Round Hoop Member Support
 Model:  RHS-3/8-304SS
 Thread Size:  3/8 in (M10)
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,100Pcs/bag
 Item Name:  Universal Angle Adapter Insert
 Model:  HW-INT-3/8" (UAAI)
 Thread Size:  3/8 in (M10)
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  3/8" Bracket
 Model:  HW-BK-3/8"
 Thread Size:  3/8 in (M10)
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  Hardware Screw Kit
 Model:  HSB-3/8X3/4" (HS-3/8X1")
 Thread Size:  3/8 in (M10)
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  Hardware Screw Kit
 Model:  SQ-3/8-HDG
 Thread Size:  3/8 in (M10)
 Metal Material:  Hot Galvanization Steel
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  Spring Nut (Channel Nut)
 Model:  SPN-XXX-304SS
 Thread Size:  M6/M8/M10/M12
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  Spring Nut (Channel Nut)
 Model:  SPN-XXX-HDG
 Thread Size:  M6/M8/M10/M12
 Metal Material:  Hot Galvanization Steel
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  Plastic Wing Spring Nut (Channel Nut)
 Model:  PSPN-XXX-304SS
 Thread Size:  M6/M8/M10/M12
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  Plastic Wing Spring Nut (Channel Nut)
 Model:  PSPN-XXX-HDG
 Nut Size:  M6/M8/M10/M12
 Metal Material:  Hot Galvanization Steel
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  SS Threaded Rods
 Model:  STR-XX-3/8-WH
 Length :  2"~15"
 Includes:  Washers,Threaded rods,Hex nuts
 Thread Size:  3/8 in (M10)
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  Hot Galvanization Threaded Rods
 Model:  HTR-XX-3/8-WH
 Length :  2"~15"
 Includes:  Washers,Threaded rods,Hex nuts
 Thread Size:  3/8 in (M10)
 Metal Material:  Hot Galvanization Steel
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  Hot Galvanization Bolt
 Model:  HGB-XX-1/2-WH
 Length :  1"~50"
 Includes:  Bolts,Washers,Hex Nuts
 Thread Size:  1/8",3/8",1/2",5/8",1"
 Metal Material:  SAE GRADE 5 Hot Galvanization Steel
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  Hot Galvanization J Bolt
 Model:  HGJB-XX-X/X-WH
 Length :  5"~50"
 Includes:  Bolts,Washers,Hex Nuts
 Thread Size:  1/8",3/8",1/2",5/8",1"
 Metal Material:  Hot Galvanization Steel
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  Hot Galvanization U Bolt
 Model:  HGUB-XX-X/X-WH
 Length :  2"~50"
 Includes:  Bolts,Washers,Hex Nuts
 Thread Size:  1/8",3/8",1/2",5/8",1"
 Metal Material:  Hot Galvanization Steel
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  Hot Galvanization Plate
 Model:  HGPT-31X115
 Size :  31X115mm
 Hole Size:  19mm
 Metal Material:  Hot Galvanization Steel
 Packing:  Plastic Bag,10Pcs/bag
 Item Name:  Aluminium Product
 Model:  AUT-XX-XX-TB
 Length :  1-10cm
 Diameter:  0.5-4.0cm
 Metal Material:  Aluminium
 Packing:  Plastic Bag,100Pcs/bag
 Item Name:  Acetal Band (Acetal Cable Tie)
 Product Class:  China Brand
 Product Model:  NBT-12.7/15000
 Materials:  Nylon
 Product Color:  Black
 Tie Size:  0.5/0.8/1.0/1.5/2.0/3.0/5.0 cm
 Packing:  15meters/Reel (50’/Reel)
 Item Name:  Acetal Band Locking Head
 Product Class:  China Brand
 Product Model:  BLH-125/182
 Application:  Locking Head
 Product Color:  Black
 Packing:  25/100/1000 Per Bag
 Item Name:  Acetal Banding Stackable Spacers
 Product Class:  China Brand
 Product Model:  BSP-508/127
 Application:  Stackable Spacers
 Product Color:  Black
 Packing:  25/100/1000 Per Bag
 Item Name:  Stainless Steel Ties
 Thickness:  0.25mm
 Width:  4.6~12mm
 Length:  100~400mm
 Surface:  Natural Colour
 Enlace Size  Φ23mm - Φ116.0mm
 Packing:  100pcs/Bag

  * For 1/2" & 7/8" clamp,the thread Rod is ØM8,For 1-1/4" & 1-5/8" clamp,the thread Rod is ØM10.

 ** The thread hole can custom-made with ØM8 or ØM10.
   *** The thread rod can custom-made with ØM8 or ØM10.

FEEDER CLAMP & HANGER
