  PRODUCT >> LAN CABLE

UTP CAT5 FTP CAT5 FTP CAT5E UTP CAT6 FTP CAT6 patch cable

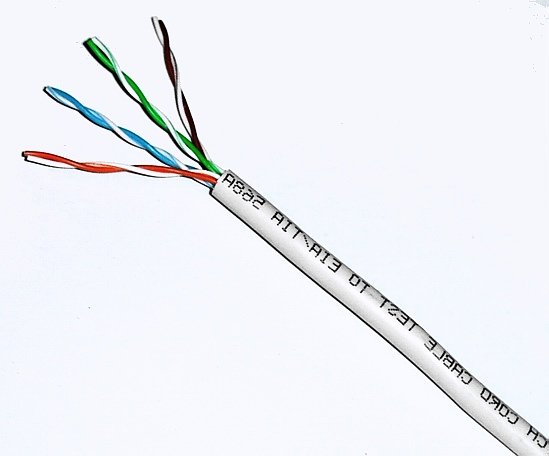

 UTP CAT5 Cable Constructiln:

Part No. Designation AWG size Conductor  Insulation Sheath Weight
382005  UTP CAT.5  2×2×24AWG 0.51mm 0.92mm 4.4mm 20.6kg
382006  UTP CAT.5  4×2×24AWG 0.51mm 0.92mm 5.3mm 33.8kg
382007 UTP CAT.5  2×(4×2×24AWG) 0.51mm 0.92mm 5.4×11.3mm 68.2kg
382008  UTP CAT.5  25×2×24AWG 0.51mm 0.92mm 12.5mm 180.3kg

 Electrical Characteristics:

Frequency
MHz
   Attenuation   Crosstalk    Crosstalk    Power Sum  Impedance   Retum Loss
 db/100m db/100m  db/100m  db/100m Ohm  db/100m
  Max.   Nom.    Min.   Nom.   Min.    Nom.   Min.   Nom. Ω   Min.  Nom.
1 1.7 2.0   85.8 62   84.2  61    76.5 61 100±10   27.1 17.0
4  3.5 4.1  86.7 53     69.5 49    58.1 49 100±10   33.4 18.8
10  5.7 6.5 70.5 47     56.3 41    50.9 41 100±10   41.5 19.7
16  7.3 8.2 69.4 44     54.2 37    49.1 37 100±10   42.4 20.0
20 8.3 9.2 67.2 43     48.5 35    46.7 35 100±10   38.8 20.0
31.25 10.4 11.7 65.6 40     44.7 31    44.2 31 100±10   37.8 18.6
62.50 15.0 17.0 58.3 35     39.9 25    35.3 25 100±10   35.4 16.5
100 19.3 22.0 54.7 32     32.3 21    26.5 21 100±15   29.3 15.1
